DZ 50-220 Download datasheet

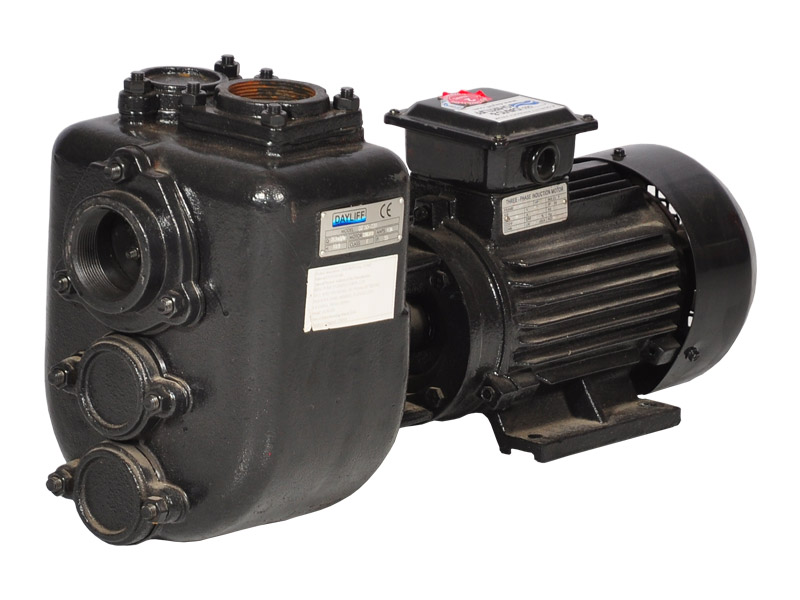

Dayliff DZ self-priming waste water pumps are of semi-open impeller axial flow type designed for pumping water containing high solid levels with particular application for site drainage, sewage and general effluent duties.

FEATURES

• Heavy duty cast iron construction throughout
• pump casting features a suction non return valve, easy opening cleaning ports and mechanical seals
• TEFC non-overloading motor designed for continous operation. Motors should be connected to A DOL starter in accordance with local regulations.
• Enclosure Class: IP56
• Insulation class: F

OPERATING CONDITIONS
Pumped liquid: Thin, chemically non aggressive liquids with a viscosity of up to 50mm 2/s containing suspended solids and particles up to the size indicated.
Working Liquid Temperature: -10⁰C + 80⁰C
Maximum Working Pressure: 6 Bar
Maximum Particle Size: 50mm

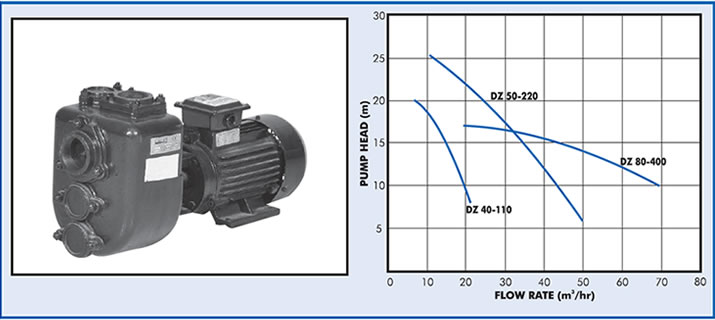

PUMP DATA
