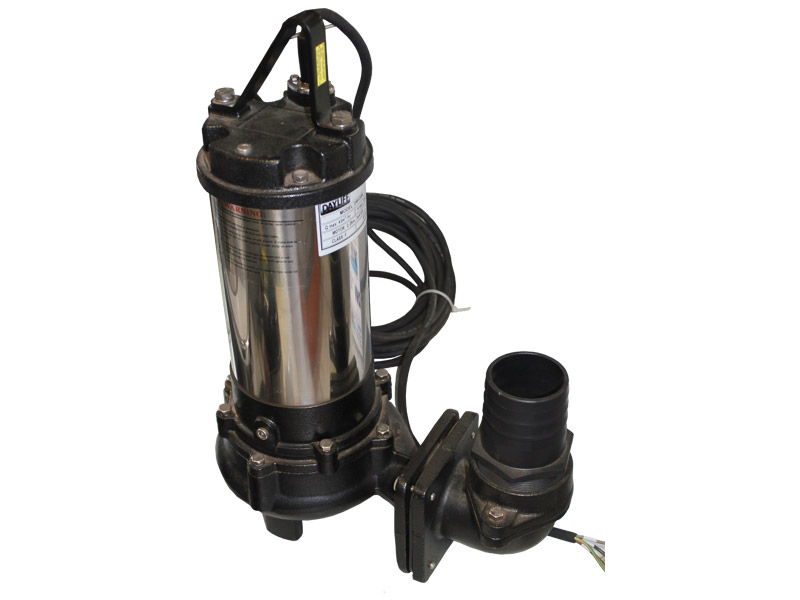

The Dayliff DWV range of vortex impellers submersible pumps are designed to handle industrial and domestic waste water and sewage and are especially suitable for pumping water containing a high proportion of solid particles.
FEATURES
OPERATING CONDITIONS
Pumped liquids: Thin, chemically non-aggressive liquids, containing suspended particles up to the specified size.
Max. Liquid temperature: +400C
Max. Operating Depth: 10m
Min. Immersion Depth: 160mm

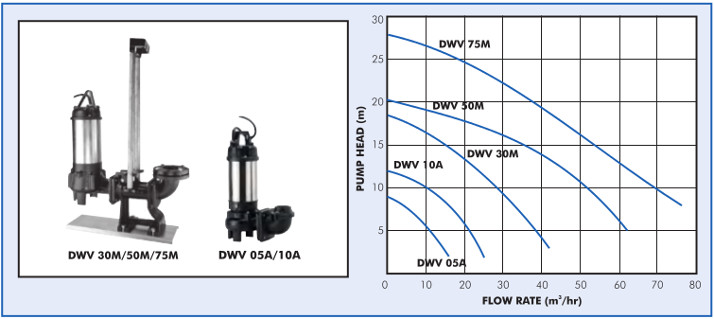

PUMP DATA
Model |
kW |
HP |
Voltage (V) |
Current (A) |
Max Particle Size (mm) |

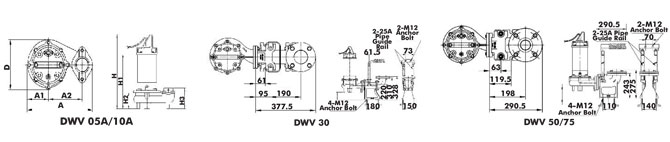

Dimensions (mm) |
Weight (kgs)
|
|
DN |
LxWxH |
|||||||
DWV 30M |
2.2 |
3.0 |
3x415 |
5.2 |
35 |
80 |
547x208x568 |
35 |
