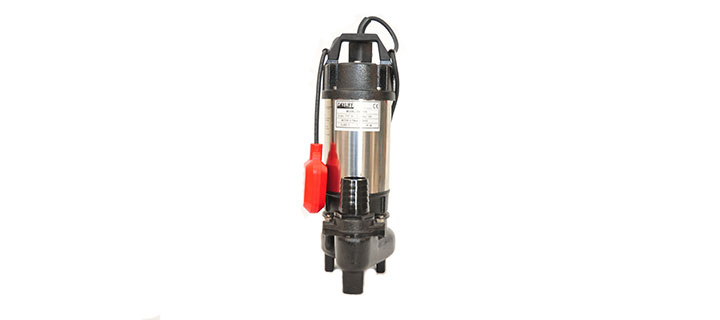

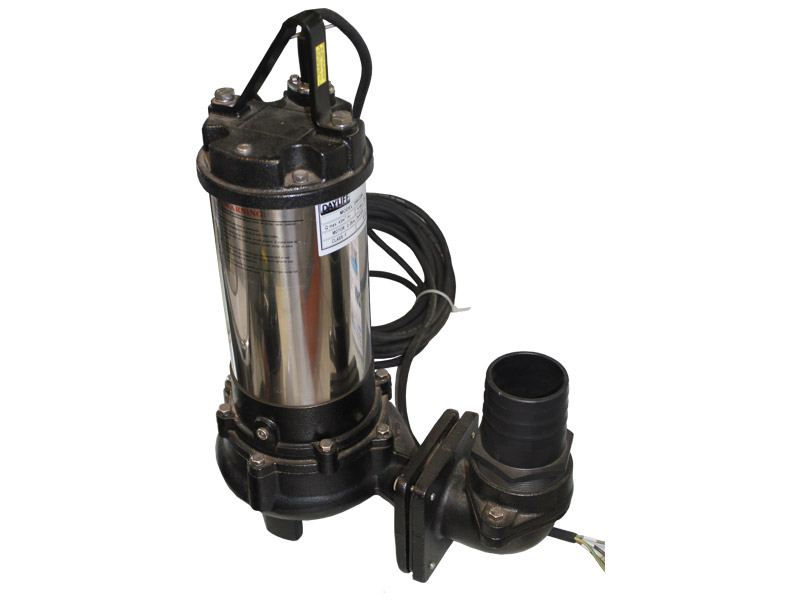

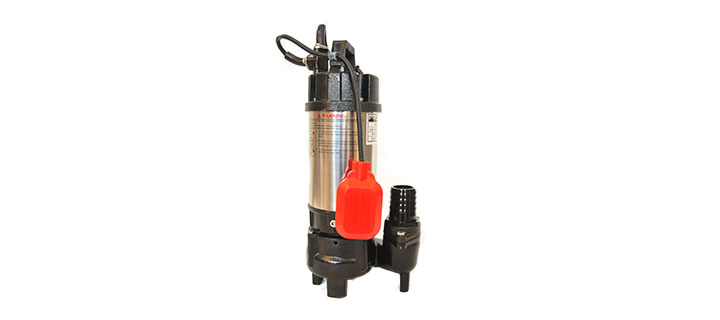

The Dayliff DWV range of vortex impellers submersible pumps are designed to handle industrial and domestic waste water and sewage and are especially suitable for pumping water containing a high proportion of solid particles.
FEATURES
OPERATING CONDITIONS
Pumped liquids: Thin, chemically non-aggressive liquids, containing suspended particles up to the specified size.
Max. Liquid temperature: +400C
Max. Operating Depth: 10m
Min. Immersion Depth: 160mm

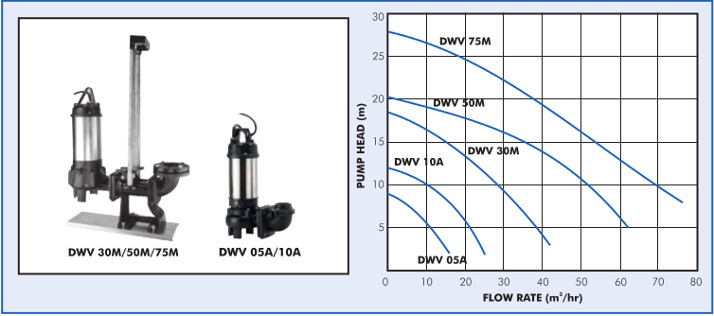

PUMP DATA
Model |
kW |
HP |
Voltage (V) |
Current (A) |
Max Particle Size (mm) |
Dimensions (mm) |
Weight (kgs)
|
|
DN |
LxWxH |
|||||||
DWV 10A |
0.75 |
1.0 |
1x240 |
6 |
35 |
50 |
222x149x464 |
18.5 |
