PUMP

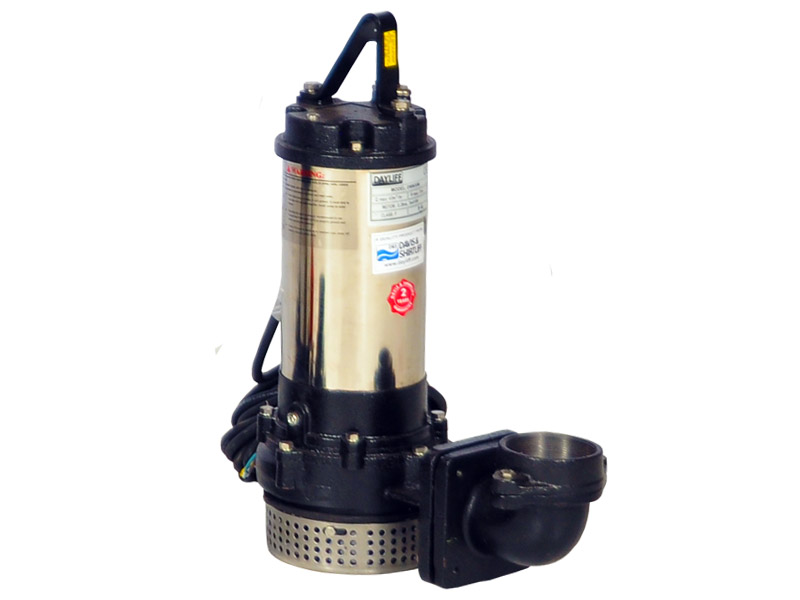

The Dayliff DWW range of open impeller portable submersible pumps are designed for pumping waste water containing particles and impurities in industrial and domestic applications.
FEATURES
OPERATING CONDITIONS
Pumped liquids: Thin, chemically non-aggressive liquids, containing some impurities and fibres
Max. Liquid temperature: +400C
Max. Operating Depth: 10m
Min Immersion Depth: 132mm
Max. Particle Size: 6mm

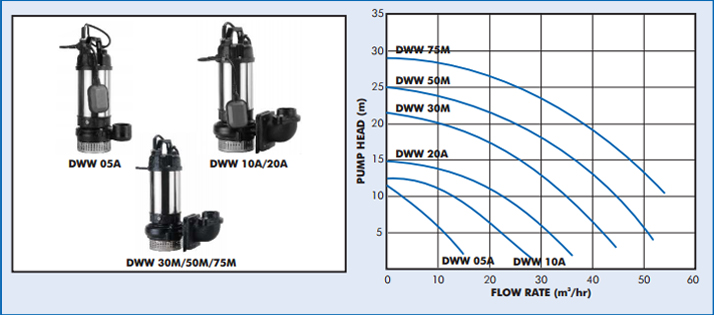

PUMP DATA
Model |
Voltage (V) |
Power |
Current (A) |
DN (“) |
Dimensions (mm) |
Weight (kg) |
||||
HP |
KW |
L |
W |
H |
H1 |
|||||
DWW 10A |
1x240 |
1 |
0.75 |
6 |
2 |
330 |
173 |
451 |
155 |
24 |
