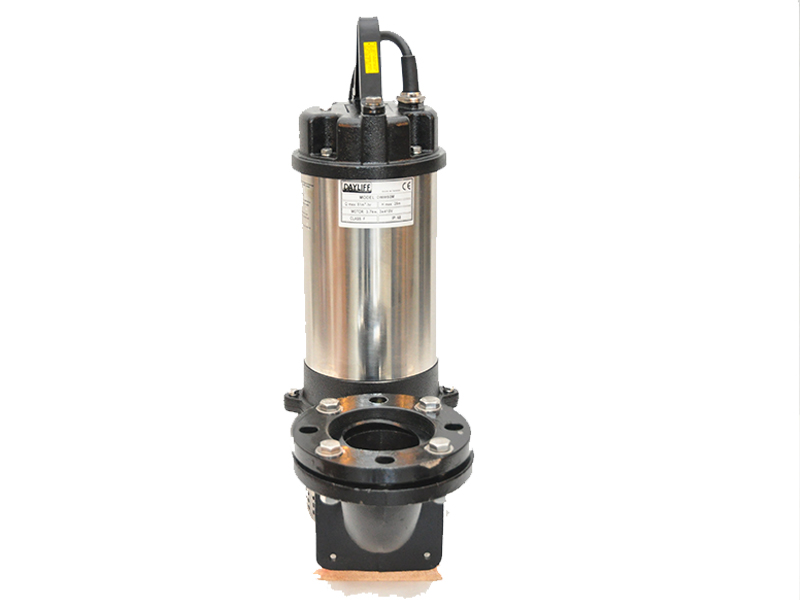

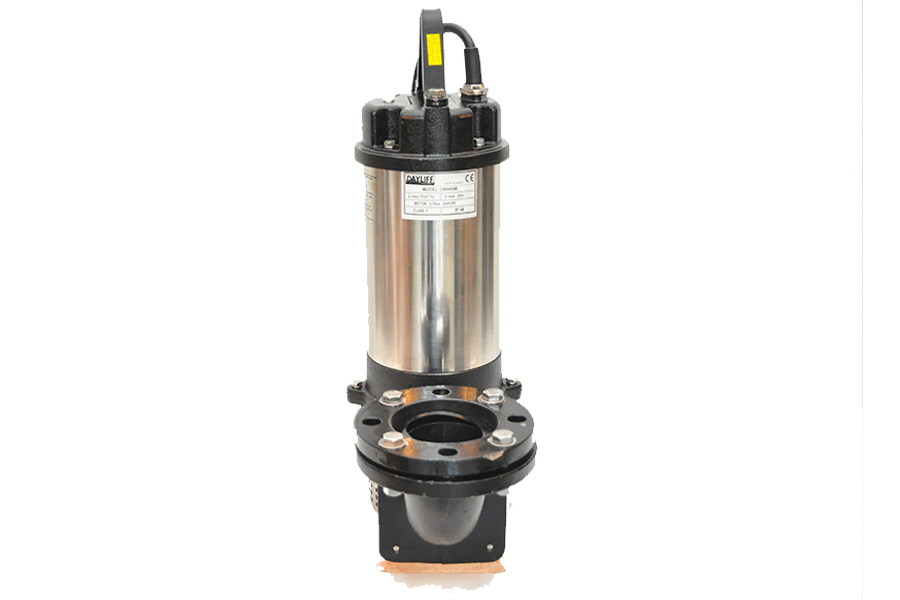

The Dayliff DWW range of open impeller portable submersible pumps are designed for pumping waste water containing particles and impurities in industrial and domestic applications.
FEATURES
OPERATING CONDITIONS
Pumped liquids: Thin, chemically non-aggressive liquids, containing some impurities and fibres
Max. Liquid temperature: +400C
Max. Operating Depth: 10m
Min Immersion Depth: 132mm
Max. Particle Size: 6mm

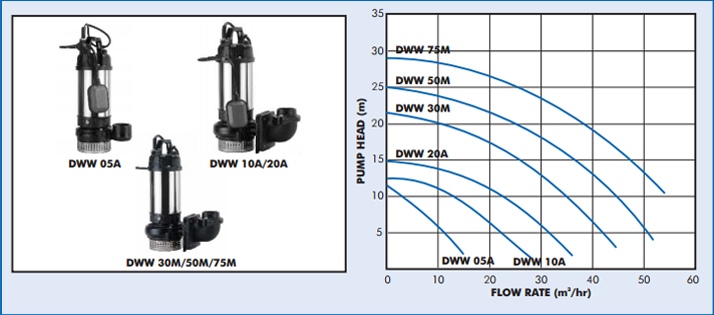

PUMP DATA
Model |
Voltage (V) |
Power |
Current (A) |
DN (“) |

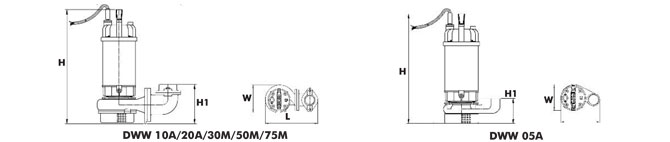

Dimensions (mm) |
Weight (kg) |
||||
HP |
KW |
L |
W |
H |
H1 |
|||||

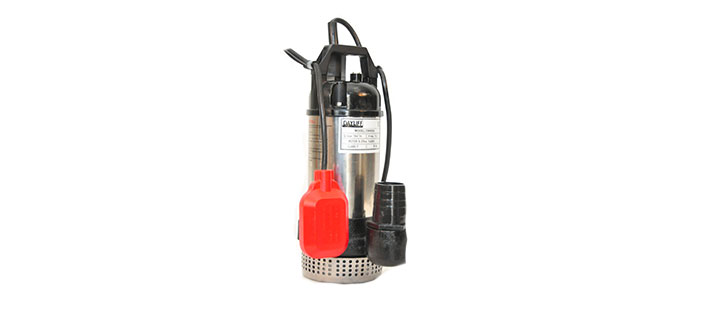

DWW 05A |
1x240 |
0.5 |
0.37 |
4 |
2 |
221 |
141 |
373 |
97 |
14 |
