The DAYLIFF DWX range of waste water pumps are high specification products for use in various drainage applications. Versions are available with open (DWXD) and vortex (DWXV) impellers.
FEATURES
OPERATING CONDITIONS
Pumped Liquids: Thin, chemically non-aggressive liquids, containing suspended particles up to the specified size.
Max. Liquid temperature: + 350C
Max. Operating Depth: 10m
Min. Immersion Depth: DWXD 85mm, DWXV 500mm
PUMP DATA
Model |
Power |
Current (A) |
Outlet (“) |

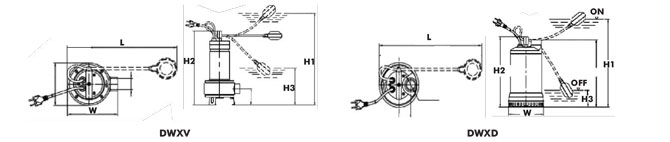

Dimensions (mm) |
Particle Size (mm) |
Weight (kg) |
|||||
HP |
kW |
H1 |
H2 |
H3 |
L |
W |
|||||
DWXD 15A |
1.5 |
1.1 |
7.2 |
1.5 |
497 |
407 |
85 |
514 |
178 |
8 |
17 |
