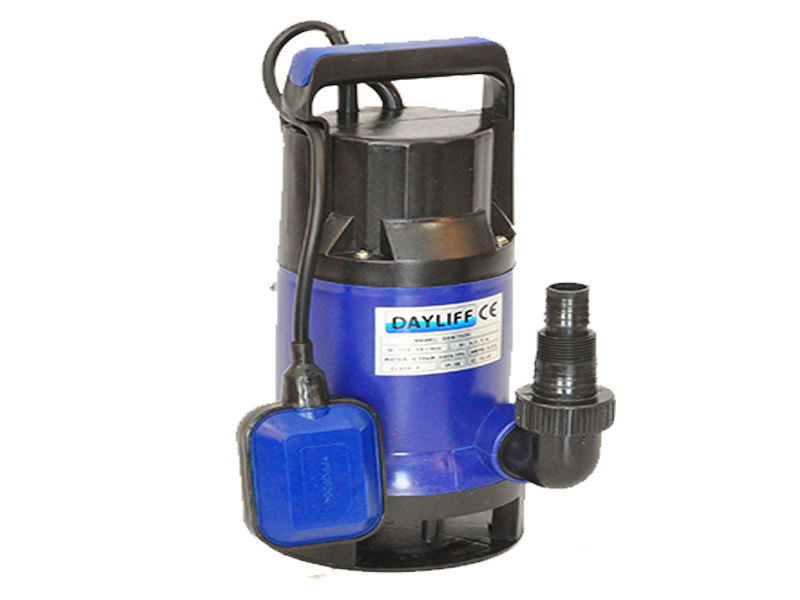

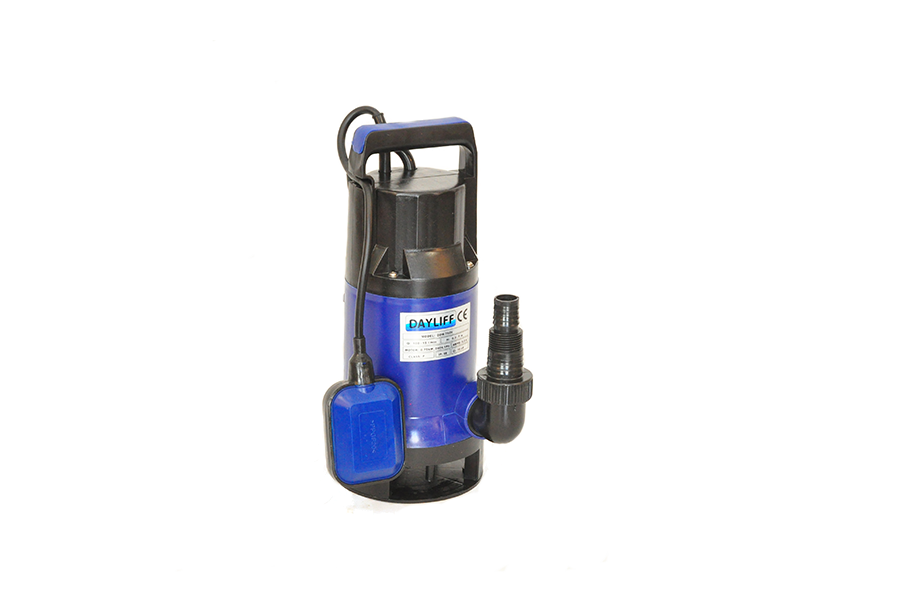

The DAYLIFF DDW submersible pump range are centrifugal submersible pumps designed for small scale drainage, irrigation, fountain and water transfer applications. Two versions are available, the standard S version with open impeller for lightly turbid water and the vortex V version for water with higher silt loads.
FEATURES
- Light and simple to install
- Constructed of high strength engineering plastic
- Provided with float switch for automatic level control
- Supplied with 5m power cable and a union connected outlet suitable for threaded or hose connection.
- Fitted with integral induction motors designed for continuous operation with thermal cut out to protect against motor overload.
- Enclosure Class: IPX8
- Insulation Class: B
- Voltage: 1x240V
OPERATING CONDITIONS
Pumped liquid: Thin, clean, chemically non-aggressive liquid containing some particles and fibres
Max fluid temperature: +350C
Max Operating Depth: 8m
PUMP DATA
Model
|
Motor
|

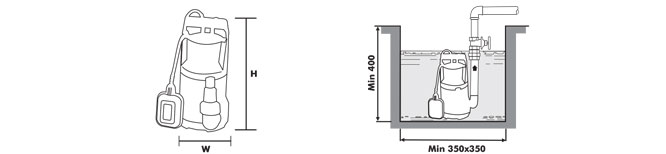

Dimensions(mm)
|
- Particle size(mm)
|
Weight(kg)
|
kW
|
Current(A)
|
Outlet(“)
|
W
|
H
|
DDW 750v
|
0.75
|
5.2
|
32
|
250
|
350
|
35
|
6
|
