OPERATING CONDITIONS
Pumped Liquids: Thin, clean, non-aggressive and non-explosive liquids without solid particles or fibres.
Liquid Temperature Range: -150C to +1200C
Maximum Ambient Temperature: +500C

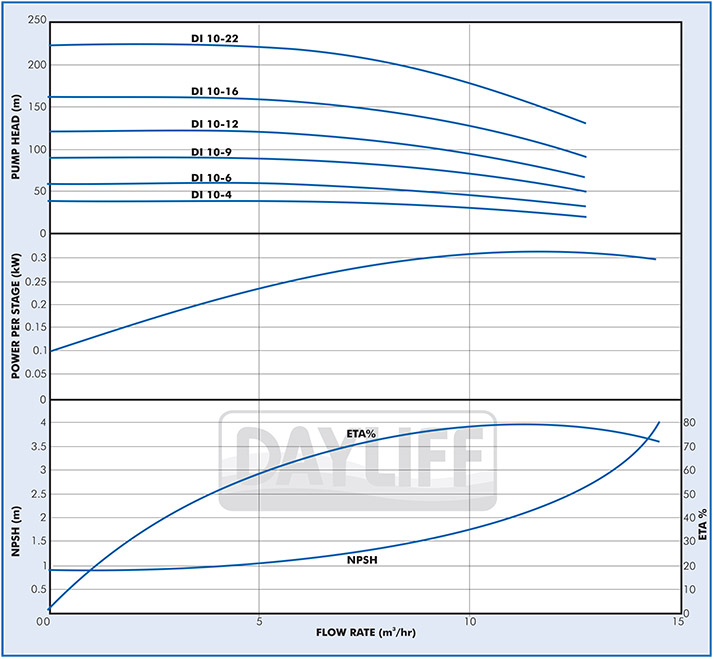

Maximum Suction Lift: According to the NPSH curve plus a safety margin of 1m
Maximum Operating Pressure: DI10-4 to 16 -16Bar, DI10-22 -25Bar
Maximum Inlet Pressure: DI10-4 and 6-8Bar, DI10-9 to 22-10Bar
Voltage: 3x415V
PUMP DATA
Model |
Motor |
Nominal Current (A) |
Dimensions (mm) |
Weight (kg) |
|||||
Kw |
HP |
H1 |
H2 |
D1 |
D2 |
D3 |
|||
DIN10-22 |
7.5 |
10.0 |
15.4 |
1010 |
1410 |
234 |
199 |
300 |
114 |
