DDJ 1100 Download datasheet

The DAYLIFF DDJ centrifugal jet type pumps are specifically designed for all small scale domestic and commercial water supply uses, especially when good suction performance is required

Features

• Integral ejector unit to provide highly effective self priming performance
• Cast iron construction with ejector and impeller made from engineering plastic
• High capacity copper wound motor designed for continuous operation and provided with a thermal overload cut out
• Can be directly connected to main power supply through a 10A fuse or MCB.
• Enclosure Class: IP44
• Insulation Class: F
• Voltage: 1x240V

OPERATING CONDITIONS

Pumped Liquid: Thin, clean, chemically non-aggressive liquids without solid particles or fibres

Max. Fluid Temperature: +50 C

Max. Ambient Temperature: +40 C

Max. Suction Lift: 9m at sea level

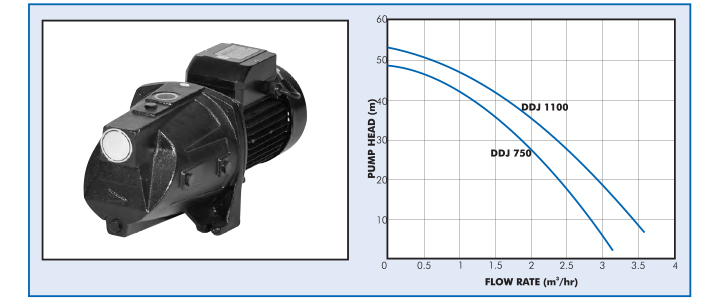

 PUMP DATA
