DSP 1-15 Download datasheet

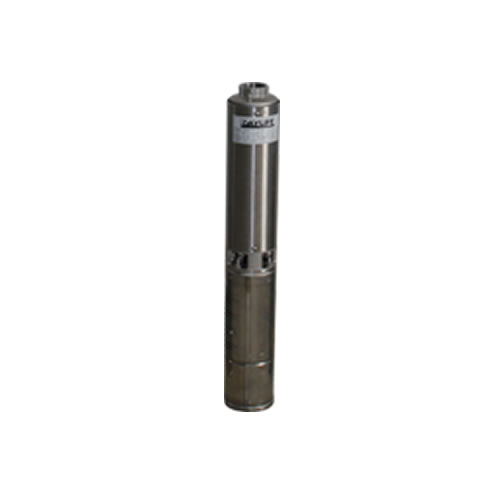

The DAYLIFF DSP range of submersible multistage centrifugal pumps are specially designed for domestic and small scale water supply from wells and boreholes. Material of construction include Noryl impellers, glass filled polycarbonate diffusers, stainless steel inlet and outlet chambers, stage casings, shaft and pump housing. These quality materials together with the floating type impeller design provide the pumps with efficient performance excellent sand handling capabilities and long life.

MOTOR
The pump is coupled to a two pole sealed motor constructed principally from stainless steel. A separate control box is also available which incorporates an isolator, run indicator light, thermal overload protection and starting capacitor which can be connected directly to mains power. The box is also provided with auxiliary terminals for control probes, pressure switch or float switch.

Enclosure Class: IP68
Voltage: 1x240V
Insulation Class: F
Speed: 2900rpm

OPERATING CONDITIONS
Pumped liquid: Thin, clean, chemically non aggressive liquids with a maximum sand content 50g/m³
Max. Water temperature: +35°C
Max. immersion depth: 200m
Min. borehole diameter: 110mm

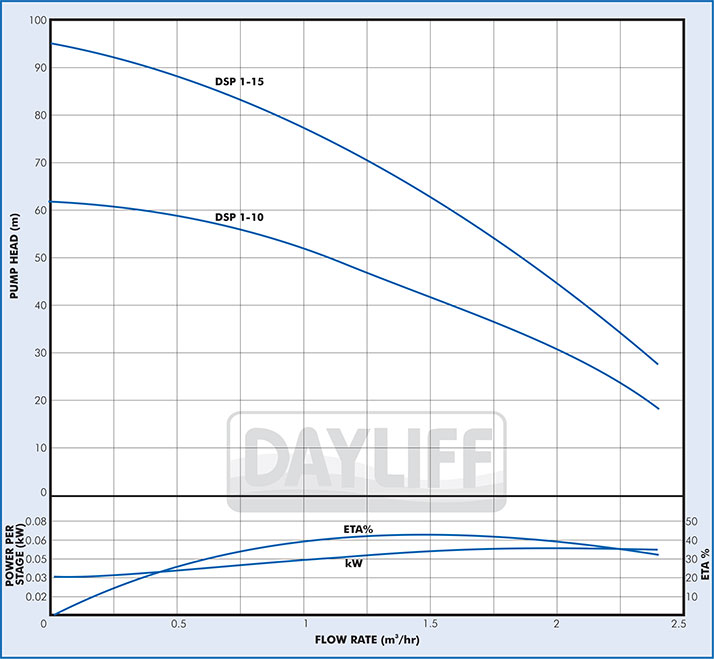

PUMP DATA
