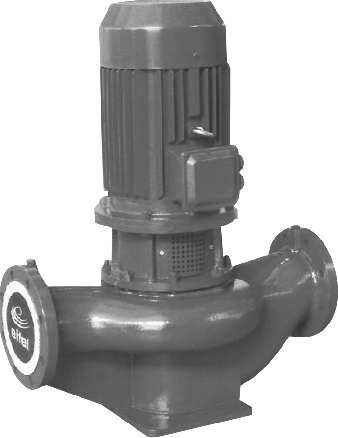

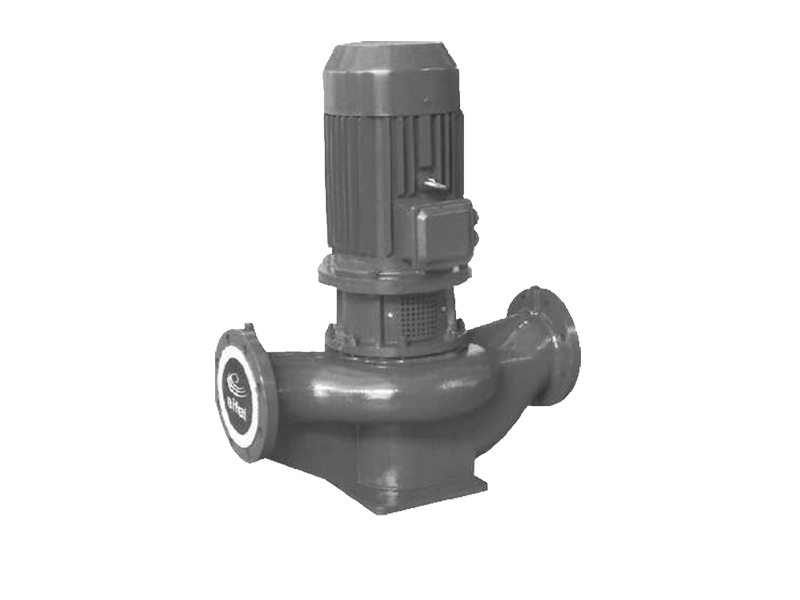

The DAYLIFF DL range of vertical in-line closed impeller centrifugal pumps are rugged, heavy duty industrial products designed for various water supply, HVAC cooling, irrigation and fire-fighting duties in agricultural, commercial and industrial applications. A wide range is available, individual pump performance being adaptable to particular duty requirement by trimming the impeller size. Pump performance is indicative. Full performance details will be provided on provision of exact duty requirements.
FEATURES
OPERATING CONDITIONS
Pumped Liquid: Thin, clean, chemically, non aggressive water without solids or particles
Max Operation Pressure: 16bar
Max Temperature:105
Model |
Speed (rpm) |
Max power(kW) |
DN(m) |
Dimensions(mm) |
Weight(kgs) |
|||
H |
H1 |
L1 |
W |
|||||
DL 40 |
1450 |
0.55 |
40 |
407 |
113 |
152 |
310 |
48 |
DL 40 |
2900 |
2.2 |
40 |
447 |
113 |
132 |
310 |
57 |
