DAYLIFF DSOLAR-A pumps are specifically designed for PV solar powered water supply from wells and boreholes. They are of rotary screw design and material of construction for rotary screw is stainless steel with a ruber stator. Pumps are of simple structure and features an inbuilt controller.

Permanent magnet, oil filled, brushless, DC motor specifically designed for maximum efficiency from solar module power source. It should be powered by solar array configured to provide the input voltage and sized at approximately 130% of the rated motor power.

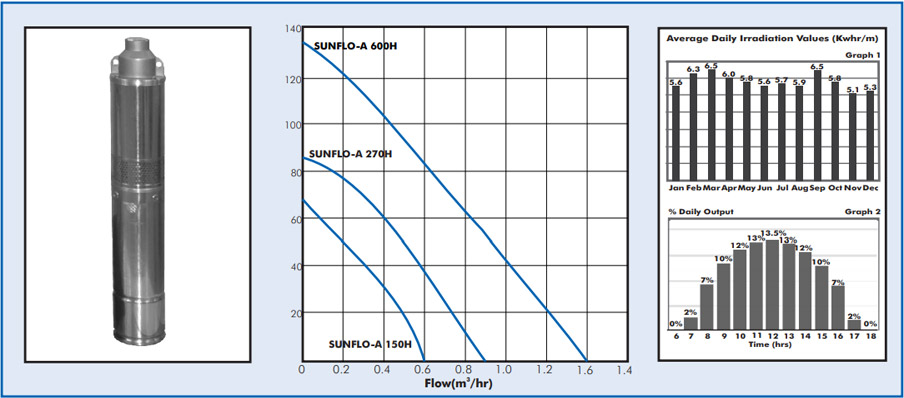

Pump output curves are given at standard test conditions of 1000W/m2 solar irradiance and 250C. Output will vary throughout the year depending upon prevailing irradiation levels. For estimated daily outputs at continuous pumping, multiply the indicated output at the duty point by the daily irradiation given in Graph 1. For indicative purposes, factors of 1.1 can be applied for hot arid areas and 0.9 for temperature high altitude areas in East Africa. Output will vary throughout the day as a proportion of the estimated hourly irradiation as shown in Graph 2.

Enclosure Class: Ip68
Insulation Class: B
Speed: 2900rpm

Pumped Liquid: Thin, clean, chemically non-aggresive liquids with a sand content of less than 0.1%
Maximum Liquid Temperature: +400C
Ambient Temperature: -200C-+500C
Maximum Immersion Depth: 20m
Minimum Borehole Diameter: 125m

Model  Input Voltage  Motor Rating (W)  Input Power (W)  Peak Voltage  Open Cicrcuit Voltage (VOC)  Outlet   Weight(Kg)
H W (") DN(")
D3SOLAR-A 150H 24 150 200 >30 <50 510 3 3/4" 7
D3SOLAR-A 270H 36 270 350 >45 <100 510 3 3/4" 7
D3SOLAR-A 600H 48 600 780 >60 <100 510 3 3/4" 7
