Product Details

The DAYLIFF DI/DIN pump range are of non self priming vertical multistage in-line centrifugal design suitable for a wide range of water supply, irrigation, liquid transfer and boosting applications. The pumps are of heavy duty construction and designed for continuous duty in commercial and industrial installations. All DIN pumps feature vital components in contact with water including the impellers, intermediate chambers, shaft and top and bottom housings are made from AISI 316 stainless steel and suitable for pumping highly mineralised corrosive water. DI pumps feature cast iron top and bottom housing and other components are AISI 304 stainless steel. All pumps are water lubricated and are provided with a standard cartridge type mechanical seal. They are supplied complete with BSP internally threaded counter flanges.

MOTOR
The pumps are coupled to high efficiency IE3 totally enclosed fan cooled 2-pole motor complying with IEC standards and must be connected to an effective motor starter in accordance with local regulations.

Enclosure Class: IP55
Insulation Class: F
Voltage: 3x415V
Speed: 2900rpm

OPERATING CONDITIONS
Pumped Liquids: Thin, clean, non-aggressive and non-explosive liquids without solid particles or fibres.
Liquid Temperature Range: -15°C to +120°C
Maximum Ambient Temperature: +50°C

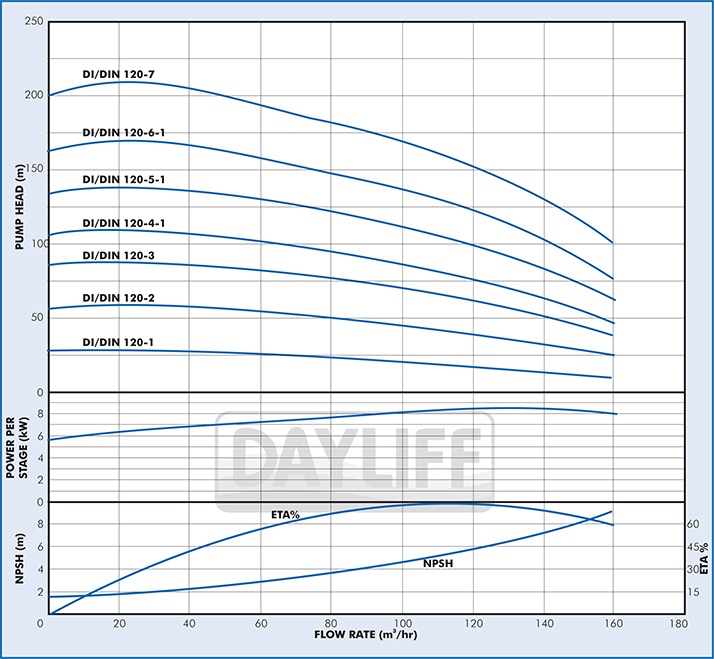

Maximum Suction Lift: According to the NPSH curve plus a safety margin of 1m
Maximum Operating Pressure: 30bar
Maximum Inlet Pressure: DI/DIN120-1-10Bar, DI/DIN120-2 to 5 -15Bar,DI/DIN120-6-1 to 7 - 20Bar

PUMP DATA

Model	Motor		Full load Current (A)	IStart/I	Dimensions(mm)					Weight (kg)
	kW	HP			H1	H2	D1	D2	D3
DI/DIN120-1	11	15	18.9	6.6	837	1282	329	215	350	196
DI/DIN120-2	22	30	37.1	6.4	993	1533	318	241	350	266
DI/DIN120-3	30	40	51.3	6.4	1149	1809	390	295	400	376
DI/DIN120-4-1	37	50	61.7	6.6	1304	1964	390	295	400	404
DI/DIN120-5-1	45	60	74.8	6.2	1463	2153	446	325	450	490
DI/DIN120-6-1	55	75	91.2	6.6	1645	2415	485	355	550	620
DI/DIN120-7	75	100	123.8	6.5	1800	2645	550	410	550	747
