Product Details

The Dayliff DDP peripheral pump is specially designed for all small scale domestic and commercial water supply uses. It is of high specification peripheral featuring copper windings, a high capacity motor and stainless steel housing inserts to ensure free impeller movement. The pump body is manufactured from cast iron and impeller from brass.

MOTORS
Pumps are close coupled to reliable TEFC electric motors designed for continuous operation and are provided with a thermal cutout to protect against electrical overload. They can be connected directly to the mains power supply through a 10A fuse or MCB.

Enclosure Class: IP44
Insulation Class: F
Speed: 2900rpm
Voltage:1x240V

OPERATING CONDITIONS
Pumped Liquid: Thin, clean, chemically non-aggressive liquids without solid particles or fibres
Max. Fluid Temperature: +60°C
Max. Ambient Temperature: +40°C
Max. Suction Lift: 7m at sea level

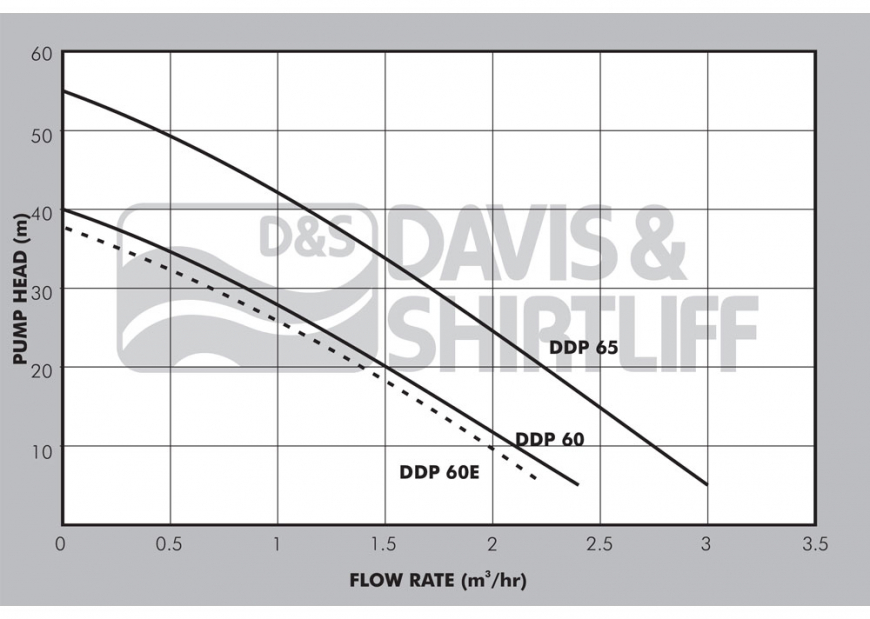

PUMP SPECIFICATIONS
