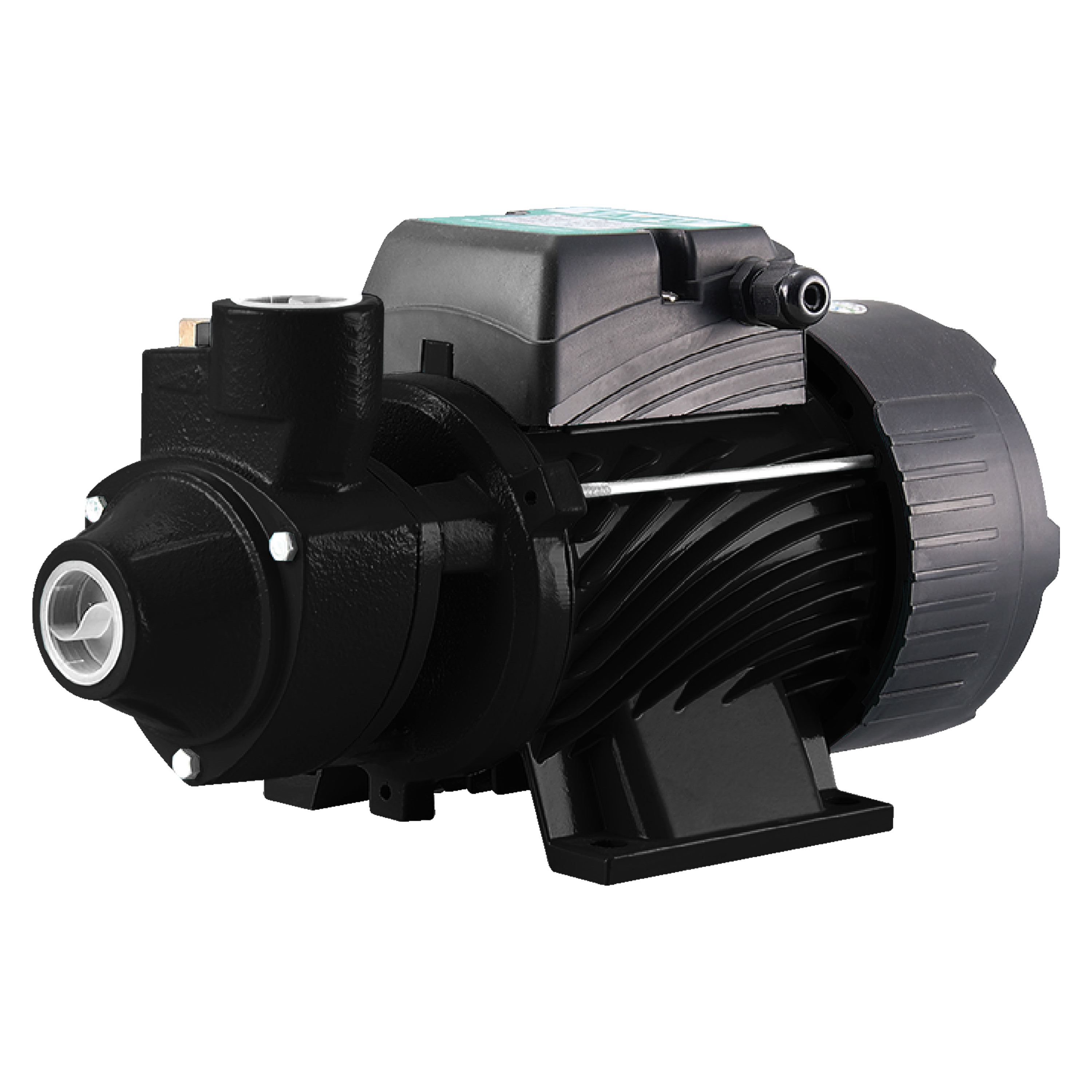

Dayliff DDPS is a solar powered booster pump suitable for water transfer in small scale applications where grid power is unavailable. It is constructed of cast iron pump body, aluminium motor body, peripheral brass impeller and silicon carbide mechanical seal.

It features an inbuilt controller that provides thermal and over voltage protection and can be connected directly to power supply. Pumps are supplied complte with 1m long PV cable with MC4 connection for quick and easy installation.

MOTOR
The pump is coupled to higher efficiency permanent magnet brushless DC motor rated for continuous operation.

Enclosure Class : IP54
Insulation Class : B
Speed : 2900rpm

POWER OUTPUTS
Pump output curves are given at standard test conditions of 1000W/m² solar irradiance and 25°C. Output will vary throughout the year depending upon prevailing irradiation levels. For estimated daily outputs at continuous pumping, multiply the indicated output at the duty point by the daily irradiation given in Graph 1. For indicative purposes, factors of 1.1 can be applied for hot arid areas and 0.9 for temperate high altitude areas in East Africa. Output will vary throughout the day as a proportion of the estimated hourly irradiation as shown in Graph 2.

OPERATING CONDITIONS
Pumped Liquid: Thin clean chemically non-aggressive liquid without solids or fibres.
Max. Ambient Temperature: +35°C
Max. Liquid Temperature: +40°C

Model Motor Input Power(W) Voltage(V) PV Modules (W) Open Circuit Voltage (VOC) Inlet/Outlet Dimensions(mm) Weight(kg)
L W H
DDPS50 220 12 2x150W (2No. Parallel Strings) <20V 1" 265 120 150 6
DDPS60 370 24 2x275W (2No. Parallel Strings) <50V
