Product Overview

Product Details

The DAYLIFF DI/DIN pump range are of non self priming vertical multistage in-line centrifugal design suitable for a wide range of water supply, irrigation, liquid transfer and boosting applications. The pumps are of heavy duty construction and designed for continuous duty in commercial and industrial installations. All DIN pumps feature vital components in contact with water including the impellers, intermediate chambers, shaft and top and bottom housings are made from AISI 316 stainless steel and suitable for pumping highly mineralised corrosive water. DI pumps feature cast iron top and bottom housing and other components are AISI 304 stainless steel. All pumps are water lubricated and are provided with a standard cartridge type mechanical seal. They are supplied complete with BSP internally threaded counter flanges.

MOTOR
The pumps are coupled to high efficiency IE3 totally enclosed fan cooled 2-pole motor complying with IEC standards and must be connected to an effective motor starter in accordance with local regulations.

Enclosure Class: IP55
Insulation Class: F
Voltage: 3x415V
Speed: 2900rpm

OPERATING CONDITIONS
Pumped Liquids: Thin, clean, non-aggressive and non-explosive liquids without solid particles or fibres.
Liquid Temperature Range: -15°C to +120°C
Maximum Ambient Temperature: +50°C

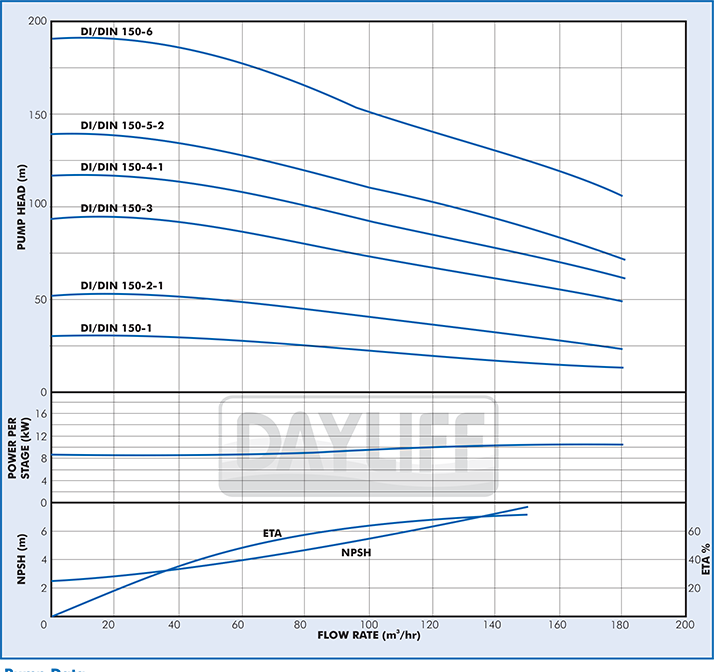

Maximum Suction Lift: According to the NPSH curve plus a safety margin of 1m
Maximum Operating Pressure: 30bar
Maximum Inlet Pressure: DI/DIN150-1 -10bar, DI/DIN150-2-1 to 150-4-1-15bar, DI/DIN150-5-2 to 150-6 - 20bar

PUMP DATA

Model Motor Full load Current (A) IStart/I Dimensions(mm) Weight (kg)
kW HP H1 H2 H3 D1 D2 D3
DI/DIN150-1 18.5 25 25.5 6.4 837 490 1339 269 215 350 190
DI/DIN150-2-1 22 30 37.1 6.4 993 540 1570 318 241 350 246
DI/DIN150-3 37 50 61.7 6.6 1148 660 1805 390 295 400 377
DI/DIN150-4-1 45 60 74.8 6.2 1308 690 1590 446 325 450 464
DI/DIN150-5-2 55 75 91.2 6.6 1489 770 2259 485 355 550 596
DI/DIN150-6 75 100 123.8 6.5 1645 845 2487 550 410 550 721

Read More Show Less

  • DI/DIN 150-1
  • DI/DIN 150-2-1
  • DI/DIN 150-3
  • DI/DIN 150-4-1
  • DI/DIN 150-5-2
  • DI/DIN 150-6
