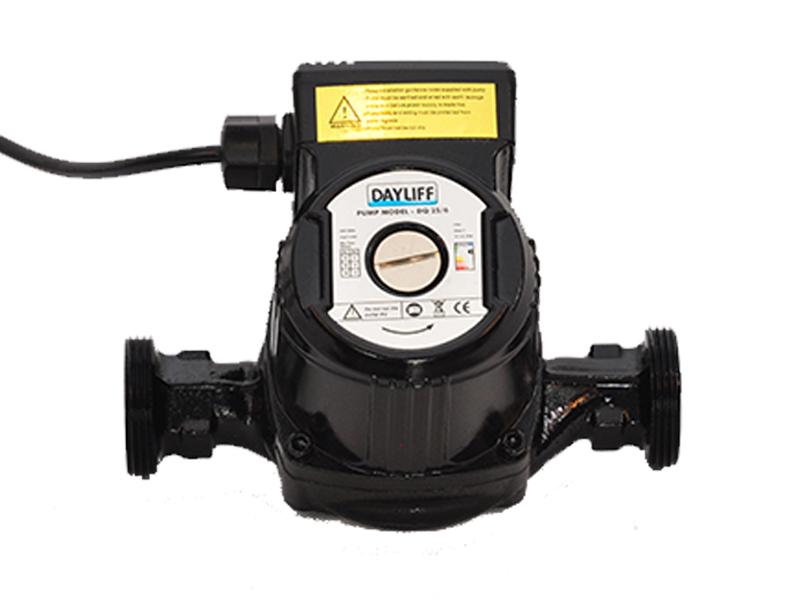

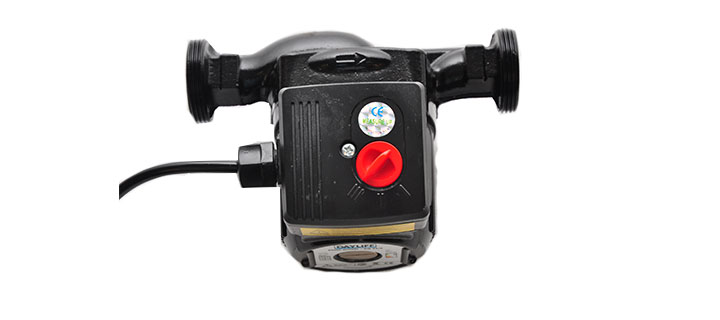

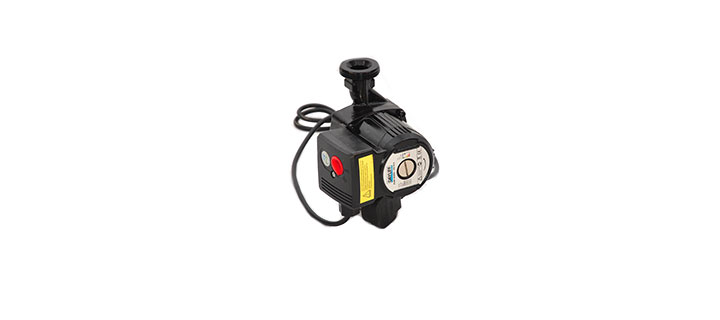

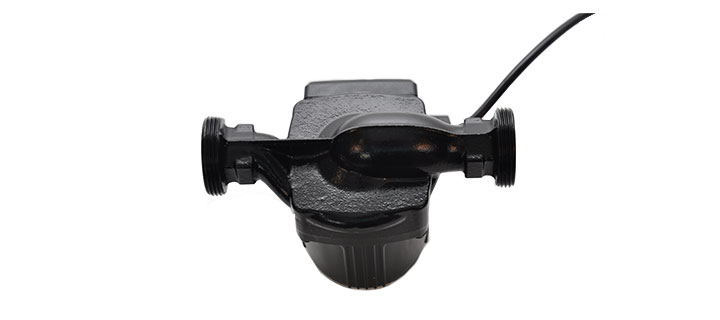

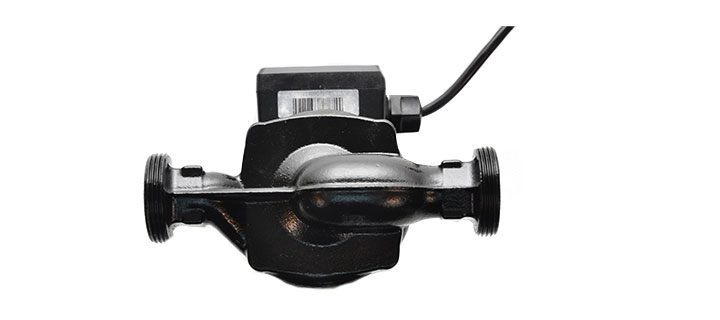

DAYLIFF DQ circulator pumps are designed for hot water circulation in heating, solar or air conditioning applications in open or closed systems.
FEATURES
OPERATING CONDITIONS
Pumped Liquid: Thin, clean, chemically non-aggressive liquids without solids or fibres.
Max Fluid Temperature:-100C -1100C. Note the liquid temperature should be higher than the ambient temperature.
Max. Ambient Temperature: 10°C - 50°C
Max. Operating Pressure: 6 bar
Installation: Pumps must be installed with rotor shaft horizontal and vertical water flow.
PUMP DATA
Model |
Power (kW) |
Current (A) |
Dimensions (mm) |
Weight (kg) |
||
L |
H |
W |
||||

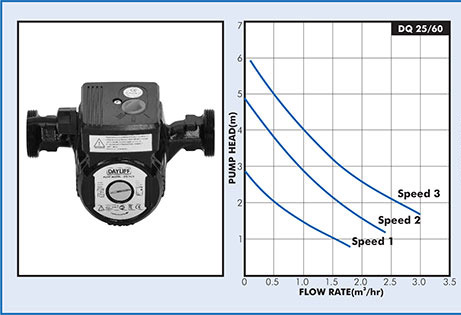

DQ 25/60 |
93 |
1.5 |
180 |
125 |
90 |
3 |
