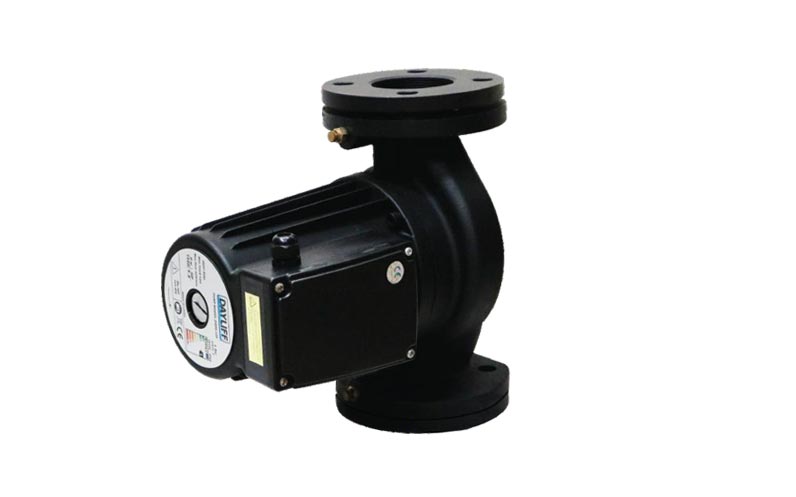

DAYLIFF DQ circulator pumps are designed for hot water circulation in heating, hot water, cooling or air conditioning systems where the duty requires high water volumes at low pressures.

Features

  • Pump construction is AISI304 stainless steel for the impellers and shaft, cast iron for the pump body and aluminium for the rotor housing
  • Integral 2-pole asynchronous squirrel-cage motor
  • Motor is of continuous duty operating at one peed
  • Motor can be connected to mains supply through an MCB and suitably sized DOL starter
  • Enclosure Class: IP44
  • Insulation Class: B
  • Voltage:3x415V

Operating Conditions
Pumped Liquid
: Thin, clean, chemically non-aggressive liquids without solids or fibres.
Liquid Temperature:-50C to +1100C
Max. Ambient Temperature: 100C - + 500C
Max. Operating Pressure: 6 bar
Certification: CE, ISO 14001, OHSAS18001, ISO9001

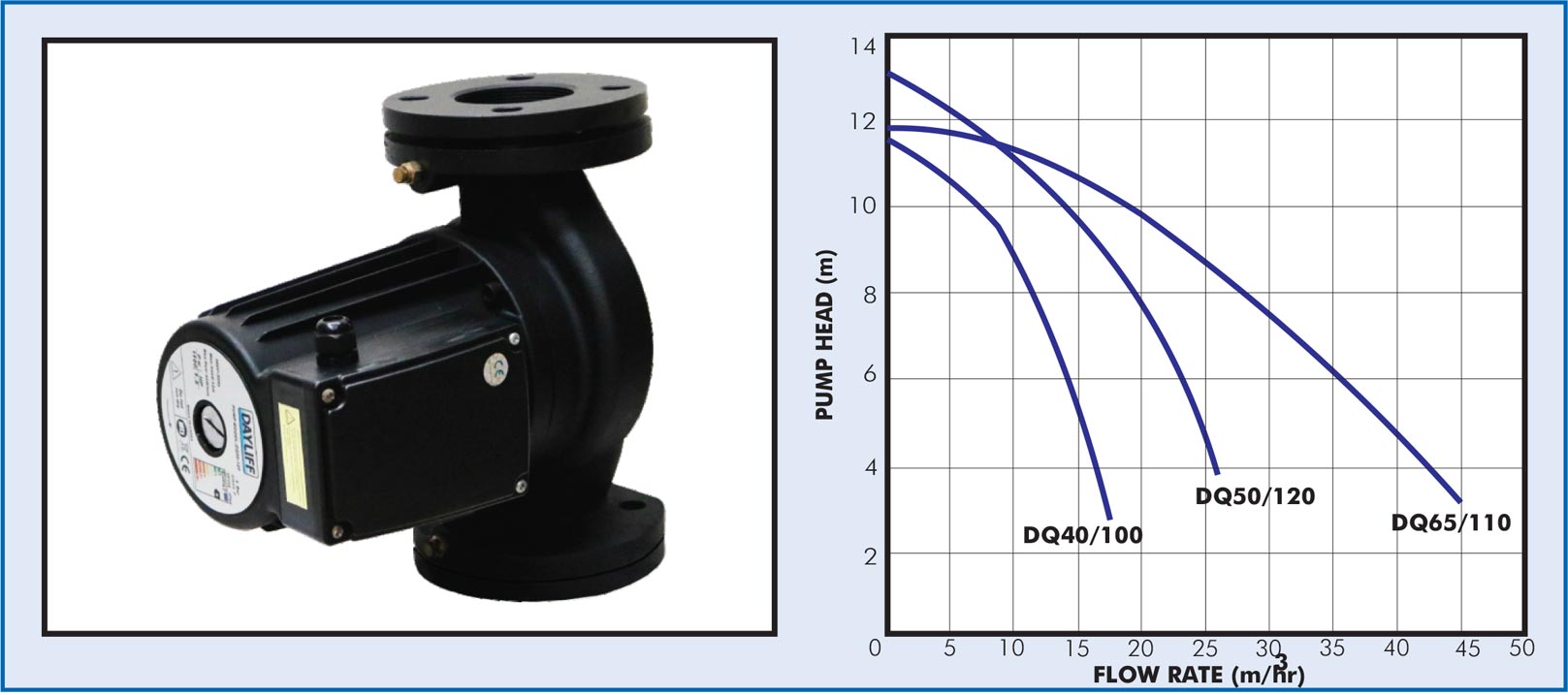

Model Power (W) Current (A) Inlet / Outlet Dimensions (mm)




Weight (kg)
B B1 D D1 D2 L E
DQ40/100 550 1.8 1 1/2" 305 70 150 110 40 250 200 22
DQ50/120 1100 2.3 2" 315 75 165 125 50 280 205 28
DQ65/110 1500 2.9 2 1/2" 330 80 188 145 65 340 210 34
