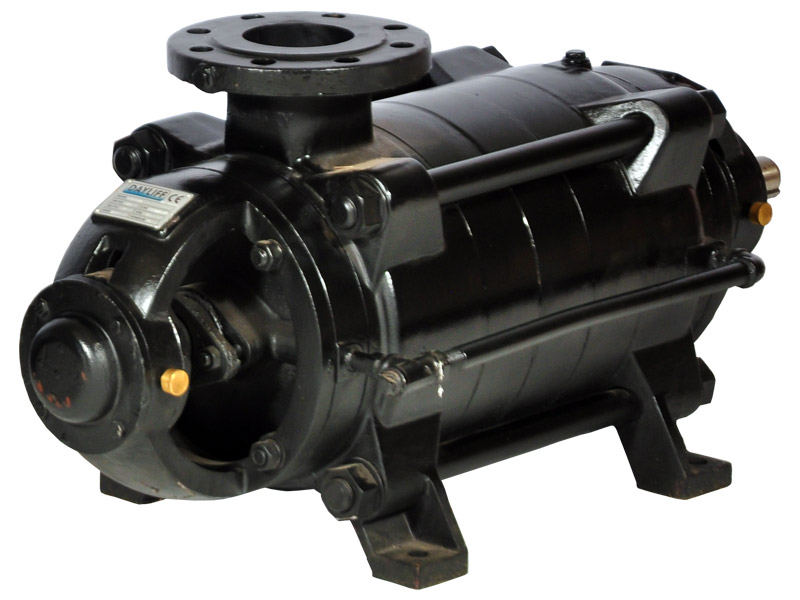

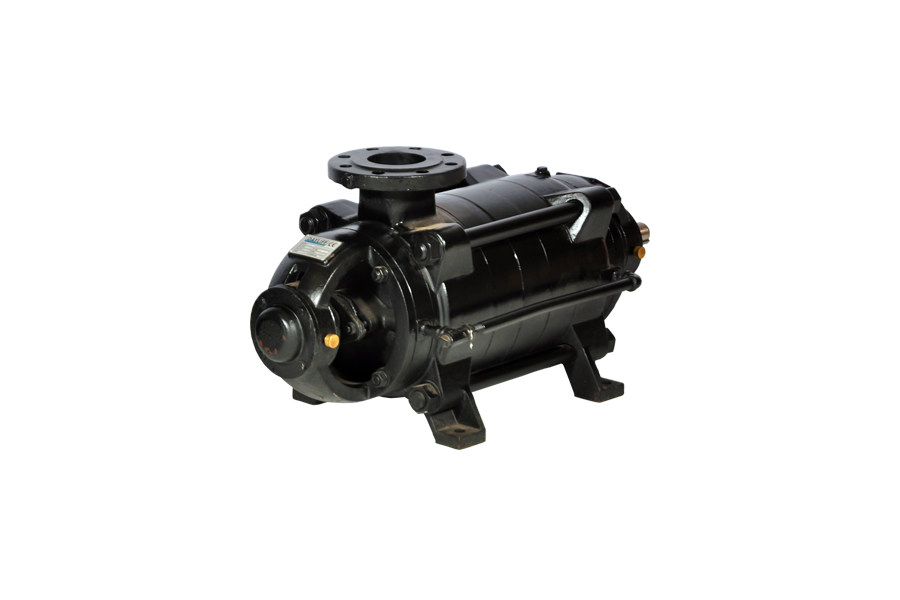

The DAYLIFF DMS range of horizontal multistage centrifugal pumps are heavy duty industrial quality pumps suitable for various water supply, irrigation and industrial applications.
A wide range of models and specifications are available, a combination of the pump size and number of stages being selected to achieve maximum efficiency at a specific duty point. Electric motors are selected according to the required power input at the duty point and mounted together with the pump and coupling on a base frame. All pumps are also suitable for direct or belt drive by diesel engine.
FEATURES
OPERATING CONDITIONS
Pumped liquid: Thin, clean, chemically non-aggressive liquids without abrasive particles or fibres
Max. Fluid Temperature: +1100C
Max. Suction Pressure: 10 Bar
Max. Delivery Pressure: 30 Bar
PUMP DATA
Model |
Dimensions (mm) |
Shaft |
Inlet Flange |
Outlet Flange |
|||||||||||||
Inlet |
Outlet |
L1 |
L4 |
E |
H1 |
H |
d |
u |
g |
D |
A |
O |
D |
A |
O |
Holes |
|
DMS 25 |
65 |
65 |
295 |
330 |
210 |
170 |
210 |
30 |
8 |
26 |
65 |
160 |
130 |
65 |
185 |
145 |
8x17.5 |
Stages |
DMS 25 |
|||
Power* (kW) |
L2 (mm) |
L3 (mm) |
Weight (kg) |
|
3 |
||||
4 |
||||
5 |
22 |
360 |
975 |
452 |
6 |
30 |
425 |
1040 |
572 |
7 |
30 |
490 |
1105 |
595 |
8 |
