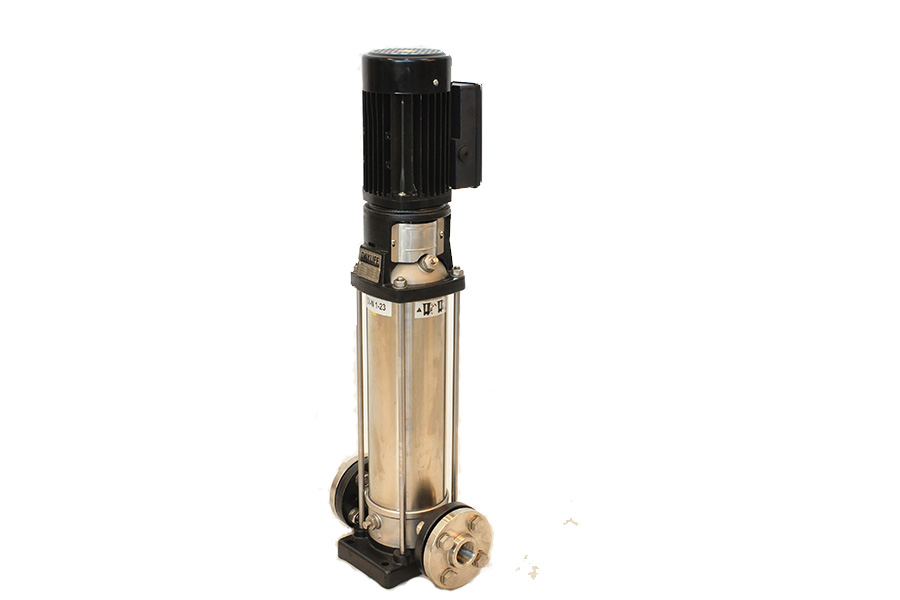

DAYLIFF DI/DIN pumps are of non-self-priming vertical multistage design suitable for a wide range of water supply, irrigation, liquid transfer and boosting applications. Pumps are made of heavy duty construction and designed for long life in continuous duty commercial and industrial use.

FEATURES
  • In-line design for simple installation
  • DI pumps feature 304 stainless steel for impeller and chamber and cast iron top and bottom housing
  • DIN pumps feature 316 stainless steel construction throughout and are suitable for pumping highly mineralised corrosive water
  • Fitted with high efficiency motors
  • All models provided with flange connections with separate BSP internally threaded stainless steel counter flanges and bolts provided
  • Cartridge type silicon carbide mechanical seal for simple seal replacement without pump dismantling
  • Enclosure Class: IP55
  • Insulation Class: F

OPERATING CONDITIONS
Pumped Liquids: Thin, clean, non-aggressive and non-explosive liquids without solid particles or fibres.
Liquid Temperature Range: -150C to +1200C
Maximum Ambient Temperature: +500C

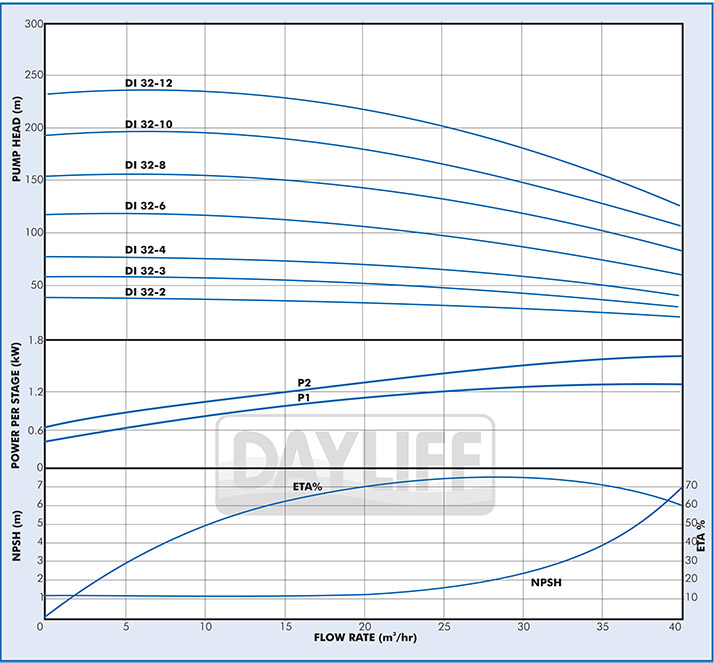

Maximum Suction Lift: According to the NPSH curve plus a safety margin of 1m

Maximum Operating Pressure:  DI32-2 to 7-16Bar, DI32-8 to 12-30Bar
Maximum Inlet Pressure:  DI32-2 to 4 -4Bar, DI32-6 to 10 -10Bar, DI32-12-15Bar
Voltage: 3x415V




PUMP DATA

Model

Motor

Nominal

Current

(A)

Dimensions (mm)

Weight

(kg)

kW

HP

H1

H2

D1

D2

D3

DIN32-10

18.5

25

31.8

1244

1779

317

242

350

209
