DI/DIN 120-7

Product Overview

DIN
Product Details

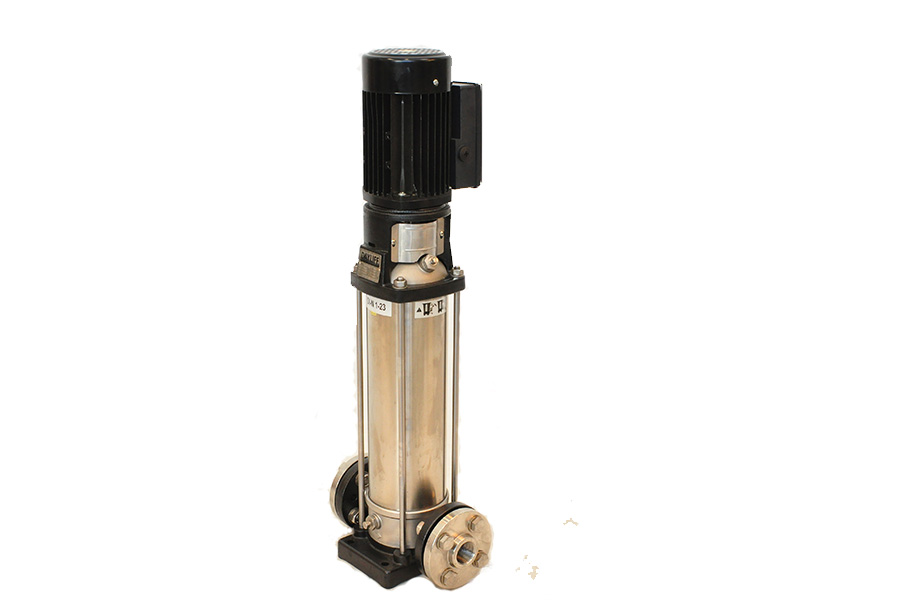

DAYLIFF DI/DIN pumps are of non-self-priming vertical multistage design suitable for a wide range of water supply, irrigation, liquid transfer and boosting applications. Pumps are made of heavy duty construction and designed for long life in continuous duty commercial and industrial use.

FEATURES
  • In-line design for simple installation
  • DI pumps feature 304 stainless steel for impeller and chamber and cast iron top and bottom housing
  • DIN pumps feature 316 stainless steel construction throughout and are suitable for pumping highly mineralised corrosive water
  • Fitted with high efficiency motors
  • All models provided with flange connections with separate BSP internally threaded stainless steel counter flanges and bolts provided
  • Cartridge type silicon carbide mechanical seal for simple seal replacement without pump dismantling
  • Enclosure Class: IP55
  • Insulation Class: F

OPERATING CONDITIONS
Pumped Liquids: Thin, clean, non-explosive liquids without solid particles or fibres.
Liquid Temperature Range: -150C to +1200C
Maximum Ambient Temperature: +50°C

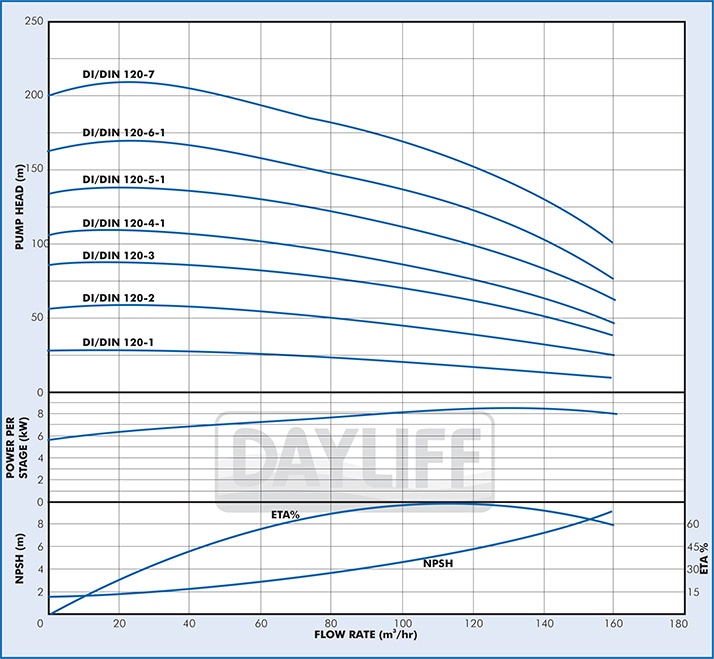

Maximum Suction Lift: According to the NPSH curve plus a safety margin of 1m
Max Operating Pressure: 25Bar
Max Inlet Pressure: 10Bar

PUMP DATA

Model

Motor

Nominal

Current

(A)

Dimensions (mm)

Weight

(kg)

kW

HP

H1

H2

H3

D1

D2

D3

DIN120-7

75

100

123

1797

845

2642

580

410

550

751



Maximum Operating Pressure: 30Bar

Maximum Inlet Pressure: DI120-1-10Bar, DI120-2 to 5 -15Bar,DI120-6-1 to 7 -20Bar Voltage: 3x415V
