Product Overview

Product Details

With the large reduction in the costs of PV modules and improved inverter technology PV power generation in on-grid installations for domestic and commercial applications is now a practical and economical proposition. The key is effective system controllers and by using the latest technology inverters from SMA Dayliff offers unbeatable systems, the PV power output being synchronised with the mains grid power supply to provide an efficient hybrid system that directly utilises all the PV power being generated with the balance of the network requirement being provided from the grid. Capacity is determined by the output of the solar array and by the specification of the inverter, systems up to 100kW being available. Basic systems provide no battery back-up and are dependent upon mains supply availability, though back-up batteries and a separate control inverter can also be specified that will provide power in all conditions. System components include:-

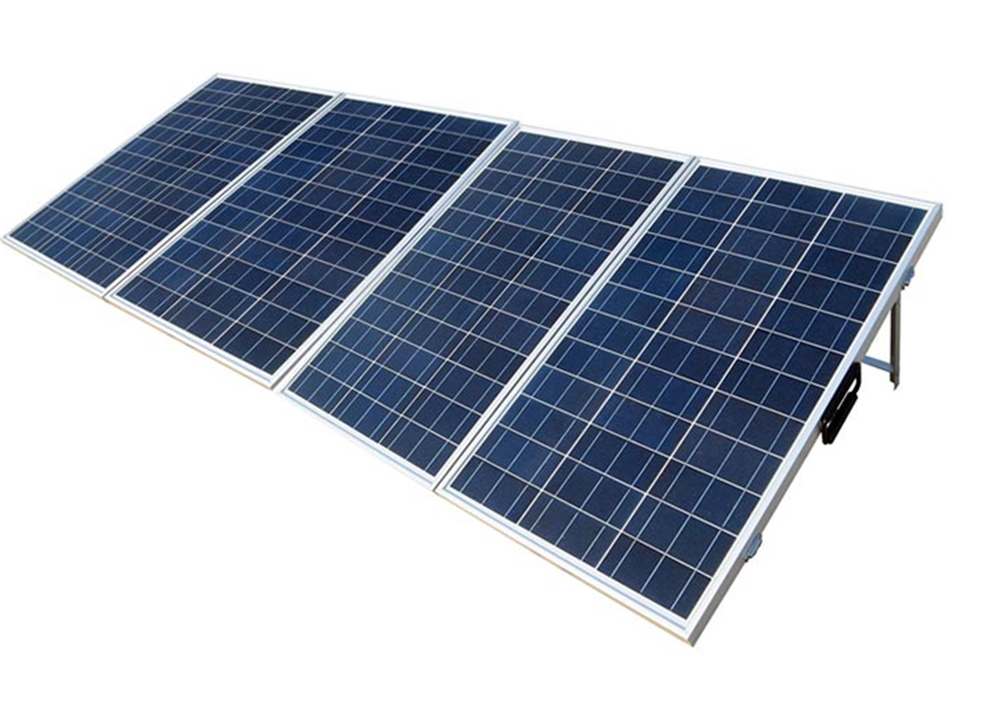

  • A PV module array can be mounted on a roof or at ground level depending on space availability. The manufacturer and individual module size is specified according to customer preference and system size.
  • An SMA inverter/controller that inverts and synchronises the DC PV output into the local power network. All SMA inverters use state-of-the-art intelligent technology and can also be used to control hybrid systems incorporating battery back-up and generators. A range of SMA accessories are also available to tailor systems to individual customer requirements.

PV Power Generation is now becoming increasingly popular due to its efficiency, the cost savings available and its ecofriendliness and investment cost is now very competitive. This combined with the reliability and advanced technology of SMA controllers make PV power generation a most practical solution to supplement power in all on-grid power networks.

Systems are individually specified according to site conditions, size and installation requirements. Packages suitable for home or small commercial sites have been specified in the table below though larger systems can be designed on request.

EQUIPMENT SPECIFICATION

Model Name Array Size(STC)  Average Daily Output  Panels  Panel Area Grid Tie Inverter Rated Power Frequency / Rated Grid Voltage
Dayliff 3kW Grid Connect 4kWp 20kWh 12No, 335W  23m² SUN3KTL-L1 50Hz/230V
Dayliff 5kW Grid Connect 7kWp 34kWh 20No, 335W  39m² SUN5KTL-M1 50Hz/415V
Dayliff 10kW Grid Connect 13kWp 67kWh 40No, 335W  78m² SUN10KTL-M1
Dayliff 15kW Grid Connect 20kWp 100kWh 60No, 335W  117m² SUN15KTL-M2
Dayliff 20kW Grid Connect 27kWp 134kWh 80No, 335W  156m² SUN20KTL-M3
Dayliff 50kW Grid Connect 67kWp 335kWh 200No, 335W  389m² SUN50KTL-M0
Dayliff 100kW Grid Connect 134kWp 670kWh 400No, 335W  778M² SUN100KTL-M0

* Daily output will flactuate and be determined by the prevailing radiation levels
