Product Details

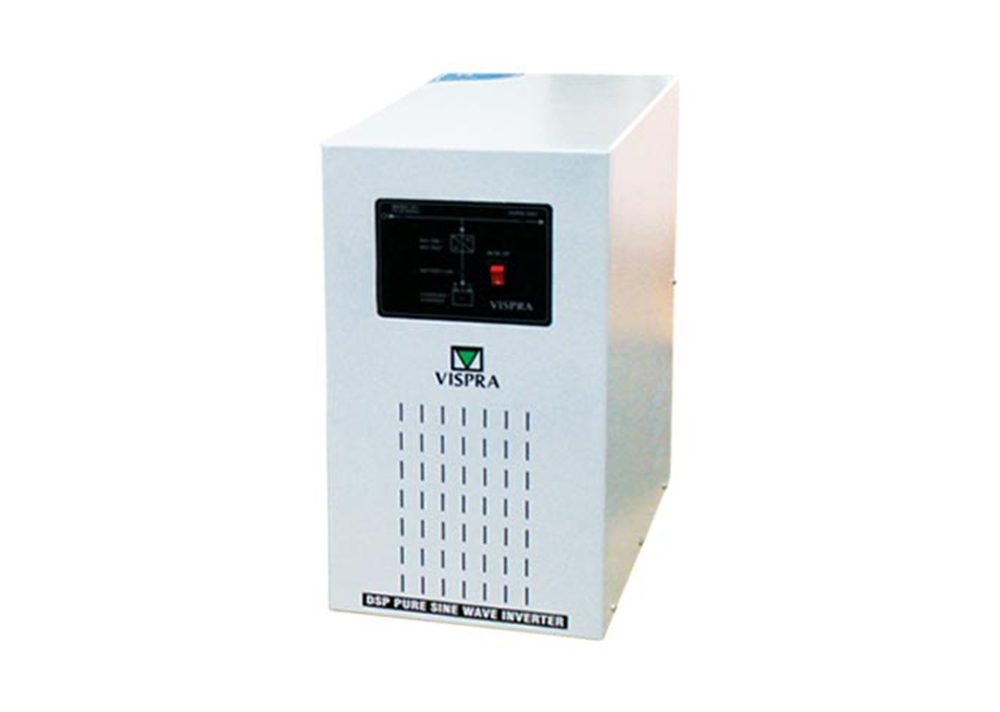

The Dayliff Vispra inverter range are quality inverter chargers for use in small to medium sized power back-up systems in residential and office applications. The inverters feature a Digital System Processor microprocessor with controlled pure sine wave output that is especially suitable for sensitive electronic equipment like computers, DVD players, printer/scanners etc. Particular features include:-
- Fully automatic mains/inverter changeover in less than 5 milliseconds.
- High efficiency - consumes 40% less power compared to square-wave inverters.
- LED display indicating operating and fault conditions.
- Audible system fault alarm.
- Output overload protection with auto reset.
- Mains high/low voltage cut-out to protect equipment in the event of irregular mains power supply.
Dayliff Vispra inverters are designed for general applications in mains failure backup conditions and the combination of advanced features and exceptional value make them the ideal solution for all small scale mains failure requirements.
Technical Specifications
Model |
VISPRA 1000 |
VISPRA 2000 |
VISPRA 3000 |
VISPRA 5000 |
Output Power |
1000VA/800W |
2000VA/1600W |
3000VA/2400W |
5000VA/4000W |
DC Input Voltage (Nominal/Range) |
12VDC (10VDC-16VDC) |
24VDC (20VDC-32VDC) |
48VDC (40VDC-64VDC) |
48VDC (40VDC-64VDC) |
AC Output Voltage/Frequency (Nominal) |
240VAC/50Hz |
Output Waveform |
Pure Sinewave |
Maximum Charging Current (A) |
12 |
17.5 |
Audible Alarm |
Alarm on battery: low battery & battery over voltage. Alarm on abnormal: Overload, Short Circuit & Over heat |
Efficiency Normal Mode |
80% |
Transfer Time |
<6ms |
18ms |
Over Current Protection |
by AC Fuse |
Control Panel |
LED |
Weight (kg) |
14 |
19 |
23 |
40 |
Dimensions (mm) |
H |
228 |
335 |
385 |
495 |
W |
325 |
175 |
230 |
285 |
D |
160 |
325 |
382 |
455 |
