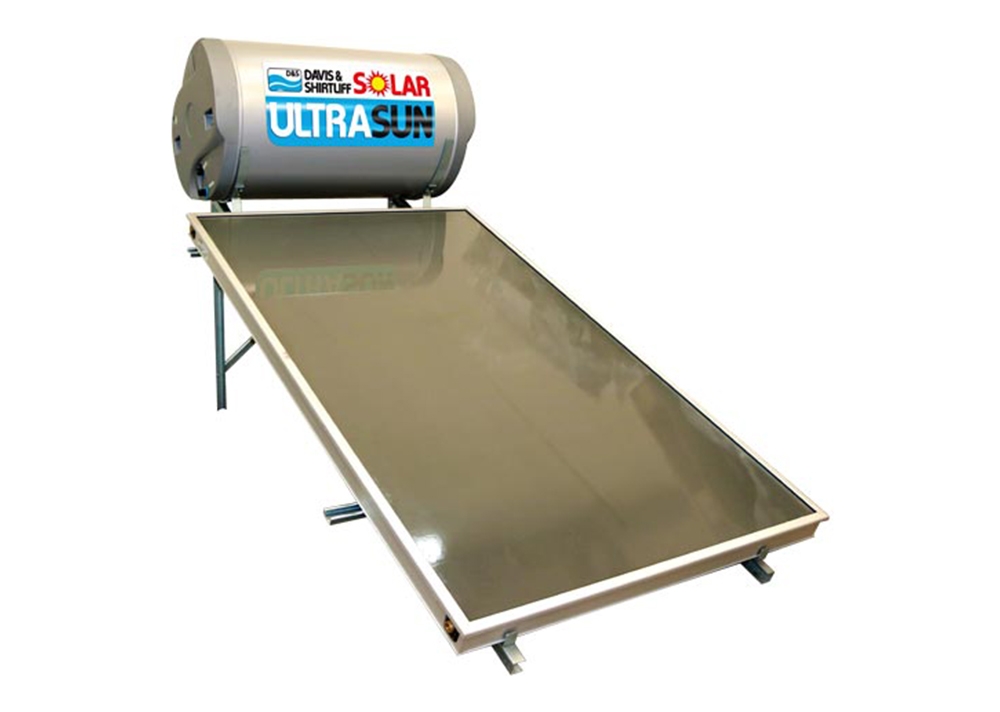

Ultrasun UFD Flatplate solar hot water systems are established and effective heaters that provide excellent performance, good value and guaranteed long life. They are of Open Loop thermosyphon type with the water flow circulating through the collectors and being stored in the tank ready for use. Features include:-
Ultrasun UFD Flatplate solar water systems are available in various tank sizes and collector configurations to suit domestic and small-scale institutional applications. They are effective and robust products designed for many years of trouble-free operation with a 5-year guarantee to demonstrate the product quality. With the benefits of progressive design and high-quality components, they are the ideal solution for all solar water heating applications.
Operating Conditions
Water Quality: Water outside the following limits should be appropriately pre-treated:
Direct: Clarity: clear, TDS: <600mg/l, Hardness: <200mg/l CaCo3, Saturation Index: >0.8<1.0
Indirect: Clarity: clear, TDS: <1500mg/l Hardness:<400mg/l CaCo3 Saturation Index: >0.8<1.0
Test Pressure: Tank - 5Bar, Collector - 10Bar
Max Operating Pressure: 3.5Bar
Max Flow Rate: 2m³/hr
SPECIFICATIONS
Model | UFD160DS | UFD160DL | UFD220DS | UFD220DL | UFD320DS | UFD320DL | |
System tank size (litres) | 160 | 220 | 320 | ||||
Typical Household (people) | 5 | 7 | 10 | ||||
Collector Model | 1xFCP1.7 | 1xFCP2.4 | 1xFCP2.4 | 2xFCP1.7 | 1xFCP3.0 | 2xFCP2.4 | |
Collector area (m³) | 1.7 | 2.4 | 2.4 | 3.4 | 3 | 4.8 | |
Collector weight (kg) | 25 | 38 | 38 | 50 | 48 | 76 | |
Collector fluid capacity(litres) | 1.2 | 1.5 | 1.5 | 2.4 | 1.7 | 3 | |
Max. heat output/Day (kWhrs) | 9 | 14 | 14 | 20 | 18 | 29 | |
Min. heat output/Day (kWhrs) | 6 | 10 | 10 | 14 | 12 | 19 | |
Dimensions (mm) | A | 800 | 800 | 800 | 1760 | 800 | 1760 |
B | 1920 | 1890 | 1890 | 1920 | 2440 | 1890 | |
C | 2620 | 2590 | 2590 | 2620 | 3140 | 2590 | |
D | 2780 | 2780 | 2780 | 2780 | 2780 | 2780 | |
E | 600 | 600 | 600 | 600 | 600 | 600 | |
F | 700 | 700 | 700 | 700 | 700 | 700 | |
Empty weight (kg) | 93 | 110 | 135 | 156 | 180 | 214 | |
Full weight (kg) | 253 | 270 | 355 | 376 | 490 | 534 |
