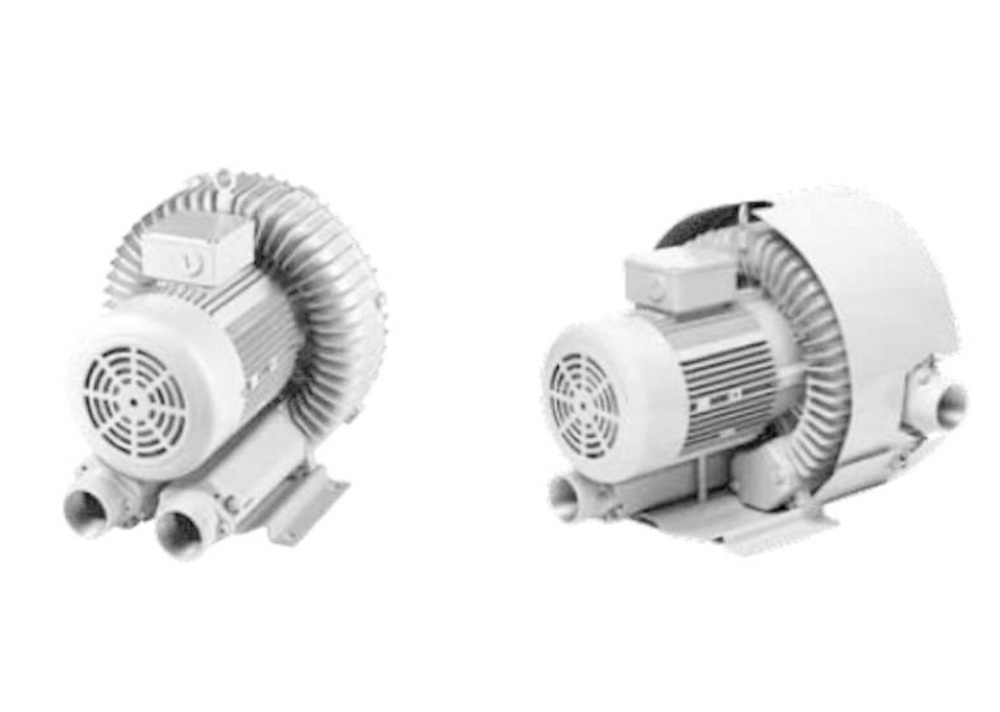

Mapro air blowers are high specification machines of side channel type fitted with centrifugal vane type impellers for applications that require consistent high air flow at medium pressures. The rotating parts are not in contact with the casing and the compressed air is therefore totally contaminant free. Other benefit include low noise levels, no vibration and pulsation free discharge. Material of construction for the compressor is aluminium alloy for both the casing and the impellers and units are close coupled to flange mounted electric motors.



All blowers are supplied with air cleaners, non-return valves, pressure relief valves and pressure gauges.



Three phase totally enclosed fan cooled motors complying to IEC specifications. All motors must be connected to an effective motor starter in accordance with local regulations.



Enclosure Class: F (up to 3kW), H(4kW and above)

Protection class: IP55

Power: 415V/50Hz

Speed: 2900rpm



​ModelPower (kW)Dimensions (mm)Inlet/Outlet (")Weight (kg)BCCL40HS1.12702863051½”18CL50HS1.53153333352”26CL60HS2.239538238542CL420HS2.24003553151½”27CL520HS3.05004103712”43CL720HS4.05324354241½”53
