DLY Diesel Engines
Product Overview
Product Details

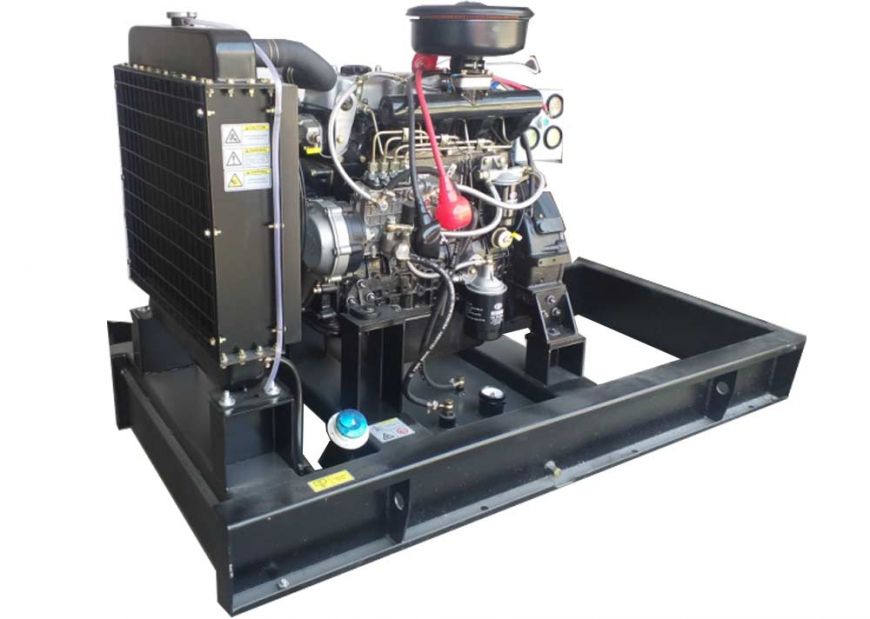

Dayliff DLY prime mover diesel engines are of 4-stroke, direct injection, water cooled design suitable for a wide range of stationary industrial and agricultural applications including water pumps, firesets and generators. All models are naturally aspirated cooled by forced water circulation and settable for fixed speeds between 1500 to 3000rpm.
Engines feature cast iron crankcases for durability with a mechanical governor and are supplied complete with integral radiator, cartridge type air, oil and fuel cleaner elements, exhaust silencer, engine mounted fuel tank and electric start with a 12V electric system. All engines are supplied with an SAE specification housing and drilled flywheel for power take off. Extension shafts are available to order.
Dayliff engines are powerful, efficient and robust assuring a long life and ease of maintenance. They are the ideal solution for all stationary diesel power requirements.
| Engine Type | DLY40 | DLY60 | DLY80 | |
| Power Output kW (BHP) | 1500rpm | 14(18.8) | 21(28.2) | 33(44.2) |
| 2000rpm | 18(24.1) | 28(37.5) | 44(59) | |
| 2600rpm | 24(32.2) | 36(48.3) | 54(72.4) | |
| 3000rpm | 29(38.9) | 42(56.3) | 62(83.1) | |
| Fuel Consumption (L/Hr) | 1500rpm | 4 | 6 | 9.6 |
| 2000rpm | 5.3 | 8.3 | 13 | |
| 2600rpm | 7.2 | 10.9 | 16.3 | |
| 3000rpm | 9.1 | 13.2 | 19.5 | |
| Induction System | Naturally Aspirated | |||
| No. of Cylinders | 4 In-line | |||
| Cylinder Capacity (L) | 1.809 | 2.543 | 3.857 | |
| Compression Ration | 18 | |||
| Lube Oil Capacity (L) | 6.2 | 8.5 | 9.8 | |
| Radiator Capacity (L) | 7.5 | 8.5 | 8.5 | |
| Direction of Rotation | Anti-clockwise viewed on flywheel | |||
| Flanging | SAE 4-7.5" | SAE 3-10" | ||
| Fuel Tank Size (L) | 60 | 80 | ||
| Cooling Medium | Water | |||
| Dimensions & Weights | Length mm(A) | 732 | 767 | 867 |
| Width mm(B) | 559 | 595 | 613 | |
| Height mm(C) | 632 | 684 | 722 | |
| Weight (kg) | 255 | 340 | 420 | |
Derating: Given outputs are sea level ratings. Sets should be derated at 1% for every 100m higher than 100m above sea level and 2% for every 5°C temperature above 20°C for naturally aspirated engines.
