Product Details

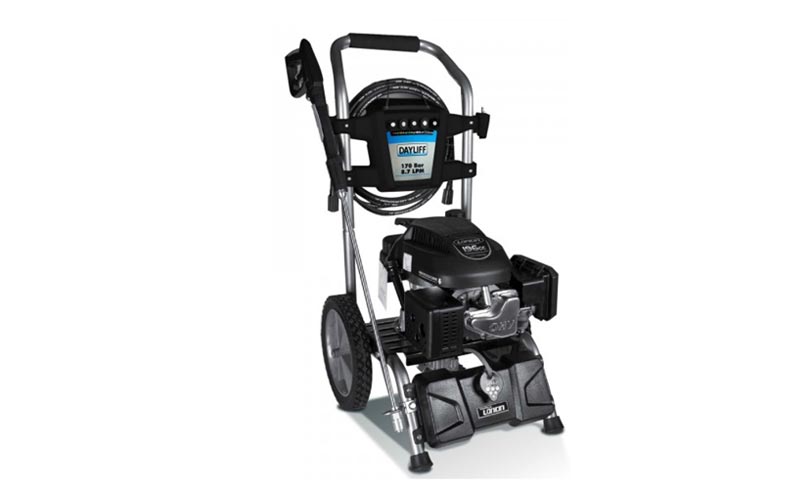

Dayliff DPW pressure washers are the ideal solution for all wash down and cleaning applications particularly for vehicles, compounds, production lines, tanks etc. They are high quality units giving high performance and excellent value. Particular features are:-

• Options of engine and electric drive to suit requirements
• Supplied complete with trigger controlled spray head with interchangeable nozzles (except for DPWE 7A with adjustable nozzle), in-line water filter and high pressure hose all wheel mounted for easy manoeuvring.
• Choice of commercial quality Triplex and residential quality Axial pressure pumps
• Engine powered models fitted with air-cooled OHV 4-stroke engines with low level oil cut out
• Electric models suitable for 240V 1 phase and supplied complete with 5m power cable

Operating parameters

Pumped Liquid: Clean non-aggressive water not containing solid particles
Liquid Temperature: 5° – 40° C
Max. Suction Head: 1.5m

PUMP DATA

Models	DPWP 9A	DPWP 15T	DPWE 7A	DPWE10T
Pump	Type	Axial	Triplex	Axial	Triplex
	Max. Pressure(Bar)	175	186	100	130
	Max Volume(L/m)	9	14.4	6.5	10
	Nozzles (No.)	3	4	Adjustable	3
Power	Displacement(cc)	196	208	N/A	N/A
	Rated Output	6.5	7.0	N/A	N/A
	Fuel Tank, L/operating Time(H)	3.6/4.5		N/A	N/A
	Power(kW)	N/A	N/A	1.2	2.2

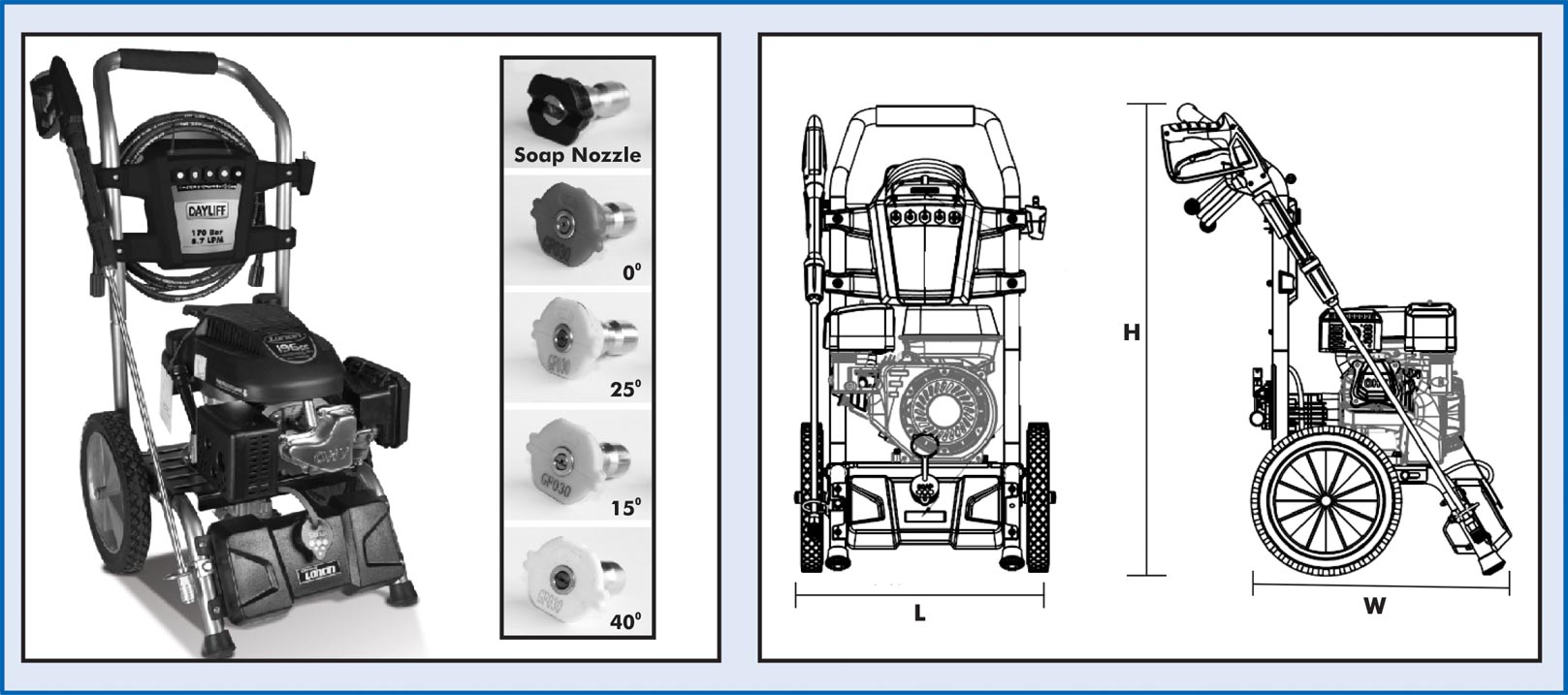

Dimensions (mm)	Length(mm)	715	700	313	595
	Width(mm)	520	560	236	390
	Height(mm)	650	575	462	415
	Weight(kg)	34	40	5	28
	Length of Hose (m)	8	8	5	8
