Product Details

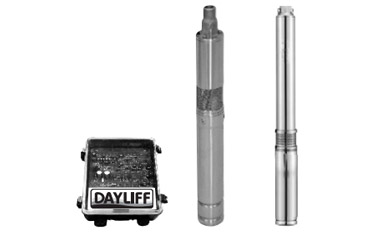

DAYLIFF DSOLAR-B pumps are specifically designed for PV solar powered water supply from wells and boreholes. They are of centrifugal and rotary screw design and material of construction for rotary screw design are principally stainless steel with a rubber stator while centrifugal design features noryl impellers and stainless steel chambers. Pumps are supplied complete with a controller, cable connectors, water level sensor, solar PV connecting cables and spare rotor for helical type.

Motor
Permanent magnet, oil filled, brushless, DC motor specifically designed for maximum efficiency from solar module power sources. It should be powered by solar array configured to provide the input voltage required and sized at approximately 130% of the rated motor power.

Enclosure Class: IP68
Insulation Class: B
Speed:2900rpm

Controller
The pump is supplied with a self-contained multifunction MPPT (Maximum Power Point Tracking) controller that tracks the solar module's maximum power output voltage which varies with module temperature and irradiation levels. This ensures maximum current output, typically +25% higher than
conventional module controllers and a similar increase in daily water output. The controller also protects from over and under voltage, over current and low water level (if electrodes are fitted) and features various indicator lights that give the pump's operating status. The system can be installed either with or without batteries. If batteries are included, the pump will operate when there is insufficient solar irradiation for direct power.

Power Outputs
Pump output curves are given at standard test conditions of 1000W/m2 solar irradiance and 250C. Output will vary throughout the year depending upon prevailing irradiation levels. For estimated daily outputs at continuous pumping, multiply the indicated output at the duty point by the daily irradiation given in Graph 1. For indicative purposes, factors of 1.1 can be applied for hot arid areas and 0.9 for temperate high altitude areas in East Africa. Output will vary throughout the day as a proportion of the estimated hourly irradiation as shown in Graph 2.

Operating Parameters
Pumped Liquid: Thin, clean, chemically non-aggressive liquids with a sand content of less than 0.1%.
Minimum Immersion Depth: 0.5m
Maximum Immersion Depth: 20m
Minimum Borehole Diameter: 125mm
Ambient Temperature: -200 C - +500C
Maximum Liquid Temperature: +400 C



Model  Type Motor(W)  Power(W) Input Power (W)  Input Voltage Dimensions(mm) Weight(Kg)
DN(") C D
D3SOLAR-B 120H Helical Rotor 120 50 160 24 3/4" 76 820 12
D3SOLAR-B 500C Centrifugal 500 500 680 48 1" 76 1020 17
D3SOLAR-B 1000C Centrifugal 1000 200 1400 110 1 1/4" 100 860 21
