DLA Engines
Product Overview
Product Details
The Dayliff DL range of naturally aspirated engines are efficient and dependable designs suitable for a wide range of prime mover applications including pumps, generators, maize mills, chaff cutters, concrete mixers etc. Petrol and Diesel types are available as follows;
DLV: Petrol engines of 4-stroke design supplied with efficient air cleaner and low oil switch for reliable and efficient performance.
DLA: Diesel engines with direct injection combustion system for easy starting and low fuel consumption paired with a mechanical governor. Engine are supplied complete with paper type air cleaner exhaust silencer and engine mounted fuel tank. Extension shafts for attaching and coupling a pulley are also available.

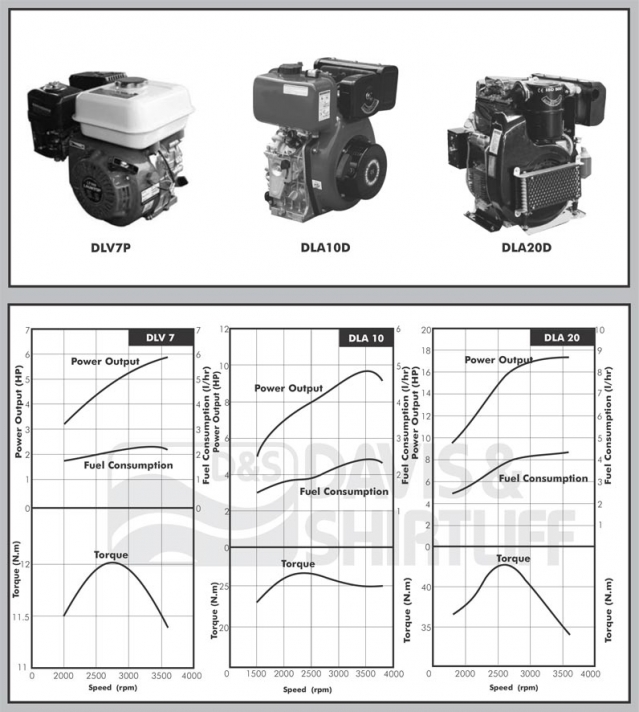

TECHNICAL DATA
| ENGINE TYPE | DLV7P | DLA10D | DLA10D | |
| Max. Power HP(kW) | 6(4.4)@3600rpm | 10(7.5)@3600rpm | 17(13)@3600rpm | |
| Max. Torque (Nm) | 12@2700rpm | 27@2500rpm | 42@2500rpm | |
| No. of Cylinders | 1 | 1 | 2 | |
| Cylinder Capacity (cc) | 208 | 418 | 954 | |
| Fuel Consumption | 2.2@3600rpm | 2.3@3600rpm | 4.2@3600rpm | |
| Starting Arrangement | Recoil | Recoil | Electric | |
| Fuel Tank Size (L) | 3.6 | 5.5 | 7 | |
| Weights | Length mm(A) | 315 | 412 | 580 |
| Width mm (B) | 362 | 470 | 475 | |
| Height mm (H) | 335 | 494 | 535 | |
| Weight (kg) | 16 | 48 | 81 | |
DERATING: Given outputs are sea level ratings. Sets should be derated at 1% for every 100m higher than 100m above sea level, and 2% for every 5°C temperature increase above 20°C for naturally aspirated engines.
