Product Details

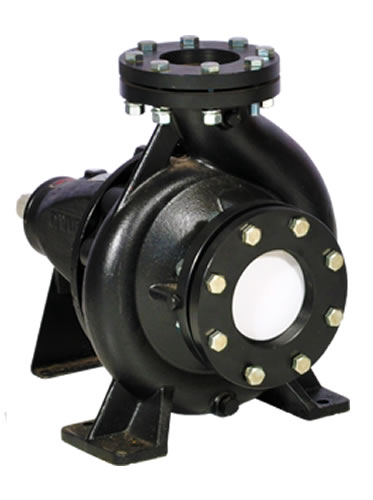

The Dayliff DE range of end suction centrifugal pumps are rugged heavy-duty pumps designed for various water supply, irrigation and fire fighting duties in agricultural, commercial and industrial applications. The pumps feature gland packing seal for simple and economic maintenance, back pullout design enabling removal of the rotating element without disturbing the pipework connections and heavy duty bearings.

A wide range is available and pumps can be modified for specific duties by adjustment of the impeller diameter which must be done with reference to the particular pump curve. Motors should be selected according to the pump speed and impeller diameter and mounted together with the pumps on a base frame with coupling. The pumps are also suitable for belt drive by either electric motor or a diesel engine. Pump construction is heavy duty cast iron casing with stainless steel shaft and bronze impeller.

Max Operating Pressure: 16Bar
Temp Range: -10°C  to +105°C

PUMP DIMENSIONS

Model	Shaft Module	Discharge	Suction	Full Impeller Max Power Absorbed (kW)		Dimesions (mm)					Net Weight (kg)
				1450rpm	2900rpm	a	f	h1	h2	n1
DE32/16	25	32	50	0.5	4.5	80	360	132	160	240	35
DE32/20	25	32	50	1	9	80	360	160	180	240	47
DE32/26	25	32	50	2.2	19	100	360	180	225	320	58
DE40/16	25	40	65	0.75	5.5	80	360	132	160	240	34
DE40/20	25	40	65	1.2	9.2	100	360	160	180	265	45
DE40/26	25	40	65	2.5	22	100	360	180	225	320	61
DE40/32H	25	40	65	-	48	125	470	200	250	345	101
DE50/16	25	50	65	1.5	11	100	360	160	180	265	39
DE50/20	25	50	65	2.2	18	10	470	160	200	265	49
DE50/26	25	50	65	4.5	40	100	470	180	225	320	68
DE50/32H	35	50	65	-	70	125	470	225	280	345	105
DE65/20	25	65	80	4	28	100	470	180	225	320	55
DE65/26	35	65	80	5.5	55	100	470	200	250	360	87
DE65/32H	35	65	80	-	85	125	470	225	280	400	111
DE80/20	35	80	100	5.5	50	125	470	180	250	345	76
DE80/26	35	80	100	10	75	125	470	200	280	400	95
DE100/20	35	100	125	7.5	55	125	470	200	280	360	84
DE100/26	35	100	125	15	130	140	470	225	280	400	102
DE100/32H	35	125	100	-	175	140	470	250	315	400	134
DE100/40	45	100	125	40		140	470	280	355	500	174
DE125/26	35	125	150	24		140	530	250	355	400	115
DE125/32	45	125	150	31		140	530	280	355	500	163
DE125/40	45	125	150	60		140	530	315	400	500	181
DE150/26	45	150	200	27		160	530	250	355	450	148
DE150/32	45	150	200	50		160	530	280	400	550	170
DE150/40	45	150	200	76		160	530	315	450	550	209
DE200/32	55	200	250	60		180	670	315	480	600	251
DE200/40	55	200	250	125		180	670	335	480	600	295
DE250/32	55	250	300	83		220	691	335	520	660	311
DE250/40	55	250	300	129		220	682	400	560	660	390
