Product Details

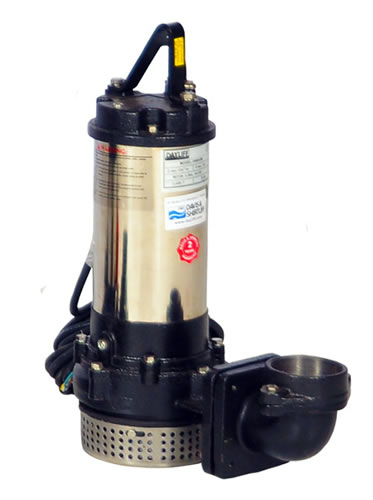

The Dayliff DWV range of submersible pumps are designed to handle industrial and domestic waste water and sewage and are especially suitable for pumping water containing a high proportion of solid particles including threads and fibres. The pumps are of heavy duty construction featuring cast iron vortex impeller which minimises clogging, cast iron pump casing, double mechanical seal and NBR oil seal. Models up to DWV 10A are designed for free standing installation and are fitted with level switches for automatic operation while larger models are designed for fixed installation with discharge connection suitable for guide rail mounting. All pumps are supplied with 10m of H07RNF cable.

MOTOR
Pumps are supplied with dry-type 2-pole motors designed for continuos duty. They are provided with integral overload protection and require a remote DOL starter.

Enclosure Class: F
Insulation Class: IP68
Speed:2900rpm

OPERATING CONDITIONS
Pumped liquids: Thin, chemically non-aggressive liquids, containing suspended particles up to the specified size.
Max. Liquid temperature: +40°C
Max. Operating Depth: 10m
Min. Immersion Depth: 160mm

PUMP DATA

Model	Voltage (V)	Power		Current (A)	Max. Particle Size (mm)	DN ('')	Dimensions (mm)			Weight (kg)
		HP	kW				L	W	H
DWV 05A	1x240	0.5	0.37	4	35	2	222	145	410	13.5
DWV 10A	1x240	1	0.75	6	35	2	222	149	464	18.5
DWV 30M	3x415	3	2.2	5.2	35	3	547	208	568	35
DWV 50M	3x415	5	3.7	8.6	50	4	663	227	638	57
DWV 75M	3x415	7.5	5.5	12	50	4	663	227	678	63
