Product Overview

Product Details

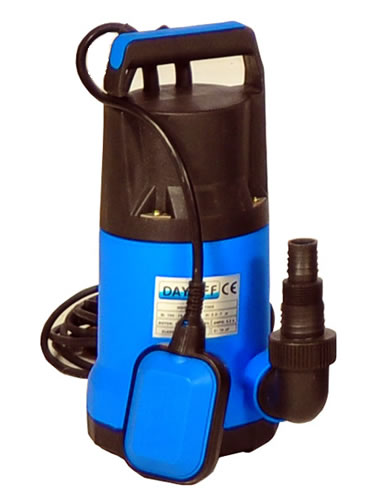

The DAYLIFF DDW submersible pump range are centrifugal submersible pumps designed for small scale drainage, irrigation, fountain and water transfer applications. Two versions are available, the standard S version with open impeller for lightly turbid water and the vortex V version for water with higher silt loads.

Features
  • Light and simple to install
  • Constructed of high strength engineering plastic
  • Provided with float switch for automatic level control
  • Supplied with 10m water proof power cable and a union connected outlet suitable for threaded or hose connection.
  • Fitted with integral non-overloading induction motors designed for continuous operation with thermal cut out to protect against motor overload
  • Pumps can be connected directly to the mains power supply through a 10A fuse or MCB
  • Enclosure Class: IPX8
  • Insulation Class: F
  • Voltage: 1x240V


Operating Conditions
Pumped liquid: Thin, clean, chemically non-aggressive liquid containing some particles and fibres
Max fluid temperature: +350C
Max Operating Depth: 7m


PUMP DATA


Model

kW



Current(A)



Dimensions(mm)





Max. Particle size(mm)

Weight(kg)

Outlet(“)

W

H

DDW 400S

0.4

1.7

1 1/4

220

370

5

5

DDW 750S

0.75

3.1

1/4

220

370

5

7

DDW 750V

0.75

5.2

1/4

220

320

35

6

DDW 1000V

1

4.2

1/4

220

385

35

7
