Product Overview

Product Details

DAYLIFF rewindable 4'' oil filled submersible motors are specially  designed to give exceptional reliability and efficiency with all submersible borehole pumps.


  • Stators are more resistant to failure due to the high efficiency design an d the ability to operate with wider voltage flunctuations.
  • Special stator design provides high torque starting, especially in single phase versions.
  • Motor casing, shaft, upper cover and bottom end made from stainless steel, the upper housing  from zinc plated cast iron.
  • Removable waterproof tail cable connection and CE approved cable suitable for potable water.
  • Non-toxic premium quality FDA approved colorless oil.
  • Standard NEMA 4" flange suitable for use with all types of pumps.
  • Protection: IP68
  • Insulation class: E
  • Voltage: 1x220v, 50Hz/3x

Operating Parameters

Max voltage variation: + or _ 10 %

Min Water pass flow rate: 0.2 m/sec

Max  Starts/Hr:40

Max Immersion Depth: 200m

Max Water Temperature:35oC

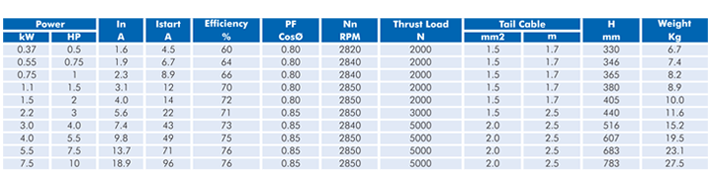

Motor Data

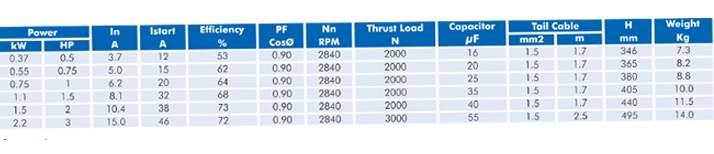

Single Phase

Three Phase

Read More Show Less

Enquire for pricing

DSM 4 Gallery
