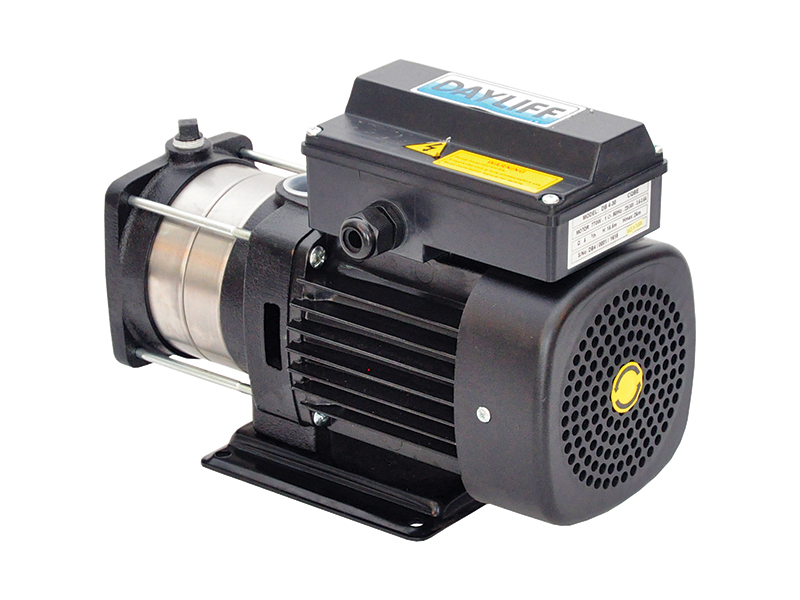

The DAYLIFF DB range of horizontal multistage centrifugal pumps are designed for continuous duty in various water transfer applications.
FEATURES
- Compact dimensions with axial suction port, radial discharge port.
- Quality materials for construction including cast iron suction chamber and pump head and stainless steel impeller and impeller housing.
- Quiet and smooth operation
- TEFC motor rated for continuous duty. Single phase pumps include built in thermal overload protection and are directly connected to mains power through a suitably rated fuse or MCB. Three phase pumps require remote DOL starter.
- Enclosure Class: IP54
- Insulation Class: F
OPERATING CONDITIONS
Pumped liquids: Thin, clean, non-aggressive and non-explosive liquids without solid particles or fibres.
Liquid Temperature Range: 00C to +900C.
Max. Ambient Temperature: +500C
Max. Suction Lift: According to the NPSH curve plus a safety margin of 0.5 m
Max. Inlet Pressure: 6 Bar
Max. Operating Pressure: 10 Bar up to 400C 6 Bar up to 900C
Pumped liquids: Thin, clean, non-aggressive and non-explosive liquids without solid particles or fibres.
Liquid Temperature Range: 00C to +900C.
Max. Ambient Temperature: +500C
Max. Suction Lift: According to the NPSH curve plus a safety margin of 0.5 m
Max. Inlet Pressure: 6 Bar
Max. Operating Pressure: 10 Bar up to 400C 6 Bar up to 900C
PUMP DATA
|
Model |
Voltage V |
Input Power (W) |
Running Current (A)
|
Speed (rpm) |
Dimensions |
Weight (Kg) |
||||||||||
|
L1 |
L2 |
L3 |
L4 |
B1 |
B2 |
B3 |
H |
|||||||||
|
DB 8-30 |
1x240 |
1130 |
5.2 |
2850 |
397 |
120 |
109 |
107 |
177 |
109 |
240 |
17.6 |
||||
|
DB 8-50 |
3x415 |
1730 |
3.4 |
2850 |
465 |
150 |
139 |
137 |
186 |
124 |
166 |
240 |
28.8 |
|||
-

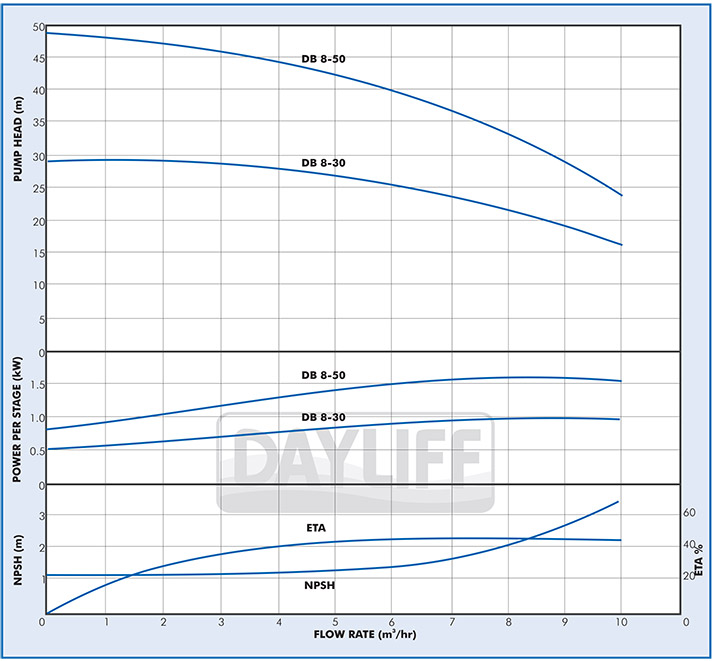

DB 8-30
-
DB 8-50
