Product Overview

Product Details

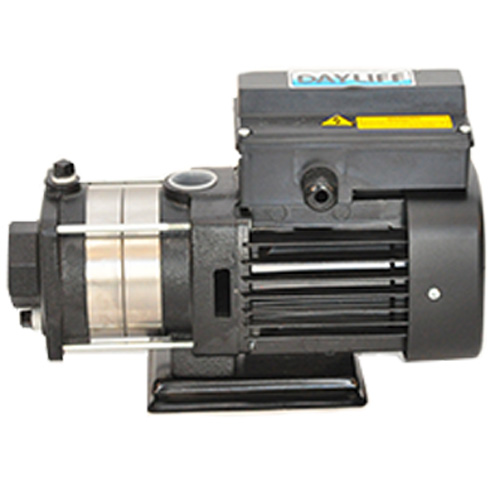

The DAYLIFF DB range of horizontal multistage centrifugal pumps are designed for continuous duty in various water transfer applications.

FEATURES

  • Compact dimensions with axial suction port, radial discharge port.
  • Quality materials for construction including cast iron suction chamber and pump head and stainless steel impeller and impeller housing.
  • Quiet and smooth operation
  • TEFC motor rated for continuous duty. Single phase pumps include built in thermal overload protection and are directly connected to mains power through a suitably rated fuse or MCB. Three phase pumps require remote DOL starter.
  • Enclosure Class: IP54
  • Insulation Class: F

OPERATING CONDITIONS
Pumped liquids: Thin, clean, non-aggressive and non-explosive liquids without solid particles or fibres.
Liquid Temperature Range: 00C to +900C.
Max. Ambient Temperature: +500C
Max. Suction Lift: According to the NPSH curve plus a safety margin of 0.5m
Max. Inlet Pressure: 6 Bars
Max. Operating Pressure: 10 Bar up to 400C 6 Bar up to 900C

PUMP DATA

Model

Input

Power

(W)

Running

Current

(A)

Speed

(rpm)

Dimensions (mm)

Weight

(kg)

L1

L2

L3

L4

B1

H

DB 2/30

480

2.3

2885

325

91

80

118

141

224

12

DB 2/50

680

3.2

2820

361

127

117

154

141

224

11

Read More Show Less

  • DB 2/30
  • DB 2/50
Results 1 - 2 of 2
